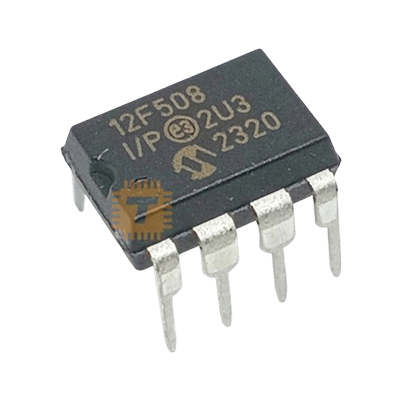

The PIC12F508/509/16F505 devices from Microchip Technology are low-cost, high-performance, 8-bit, fullystatic, Flash-based CMOS microcontrollers. They employ a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle (200 µs) except for program branches, which take two cycles. The PIC12F508/509/16F505 devices deliver performance an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easy to remember instruction set reduces development time significantly.

Parametrics

• Program Memory Type: Flash
• Program Memory Size (KB): 0.75
• CPU Speed (MIPS/DMIPS): 1
• SRAM (B): 25
• Timers: 1 x 8-bit
• Temperature Range (°C): -40 to 125
• Operating Voltage Range (V): 2 to 5.5
• Pin Count: 8
