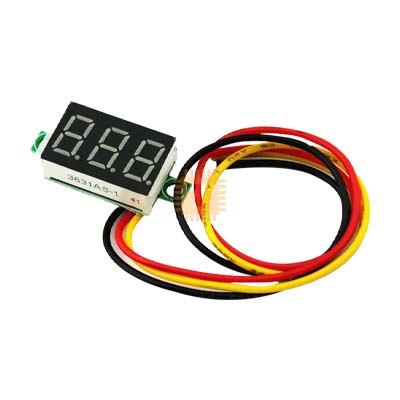

This is a 100-volt digital voltmeter with a 0.36-inch LED display that works with input voltages ranging from 3 to 30 volts. The metre's PCB assembly contains two mounting holes, allowing users to easily attach it to a panel or other surface.

This digital voltage meter comes with three wires. Only two wires are required to connect this device to the target circuit for voltages up to 100V, and the same DC voltage utilised by the target circuit is used to power this voltmeter. For applications requiring measurements of more than 30 volts, three wires and an additional power supply are used.

Package Included:

• 1 X Mini Digital DC Voltmeter

Applications:

• Project power supply monitoring up to 100V
• Monitor battery voltage of a car, motorcycle, truck or bus which has 12v or 24v batteries
• Monitor UPS, home inverter batteries of 12V or 24V, or solar panel voltage.

Wiring Details:

• Wiring Details:
• Red: Power Supply V+
• Black: Power Supply V-(GND)
• Yellow: Measure +

Technical Specifications:

• Measuring Range: 4.5-100V DC
• Error: 1%
• Display: Three-digit 0.36" Red LED Segment Display
• Refresh Rate: 500 mS
• Power Supply: 3.0-30V
• 3-4mA draw
• Operating Temperature: -10ºC to 65ºC
• Lead Length: 15cm

For use with positive voltages only!
