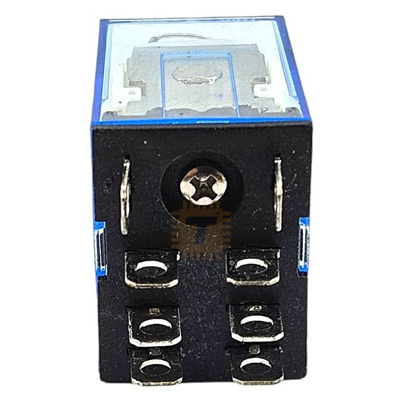

The Omron LY2N-J 220VAC Relay is a robust, general-purpose electromagnetic relay designed for reliable switching in industrial and commercial applications. It features a double-pole double-throw (DPDT) contact configuration, allowing it to control two independent circuits simultaneously.

Features :

• Transparent Case: Allows visual inspection of internal components and operation.
• LED Indicator: Provides clear visual confirmation of relay coil status.
• Arc Barrier: Equipped with an arc barrier for arc interruption, enhancing safety and longevity.
• High Dielectric Strength: Withstands voltages up to 2,000 VAC, ensuring reliable insulation.
• Versatile Mounting: Designed for use with plug-in sockets, facilitating easy installation and replacement.

Specifications :

• Coil Voltage: 220–240 VAC
• Contact Configuration: DPDT (Double-Pole Double-Throw)
• Contact Material: Silver Alloy (Ag alloy)
• Rated Contact Load:
  • 10 A at 240 VAC (resistive load)
  • 10 A at 28 VDC (resistive load)
• Coil Current:
  • 220 VAC: 4.8 mA (50 Hz) / 4.2 mA (60 Hz)
  • 240 VAC: 5.3 mA (50 Hz) / 4.6 mA (60 Hz)
• Coil Resistance: Approximately 18,790 Ω
• Power Consumption: Approximately 0.9 to 1.1 VA (60 Hz)
• Operate Voltage (Set Voltage): 80% max. of rated voltage
• Release Voltage (Reset Voltage): 30% min. of rated voltage
• Maximum Voltage: 110% of rated voltage
• Operating Indicator: Built-in LED
• Mounting Type: Plug-in (8-pin)
• Compatible Socket: PTF08A (not included)
• Dimensions: Approximately 41 mm x 27 mm x 20 mm
• Weight: Approximately 32 grams

Applications :

• Industrial automation systems
• Control panels
• HVAC systems
• Lighting control
• Motor control circuits
• Home appliances
