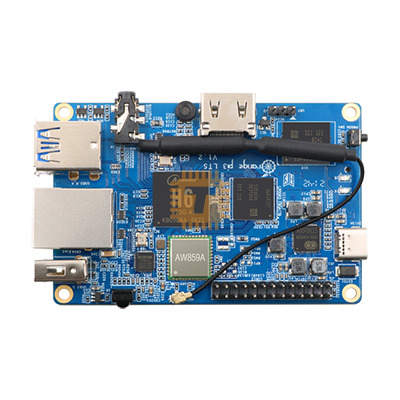

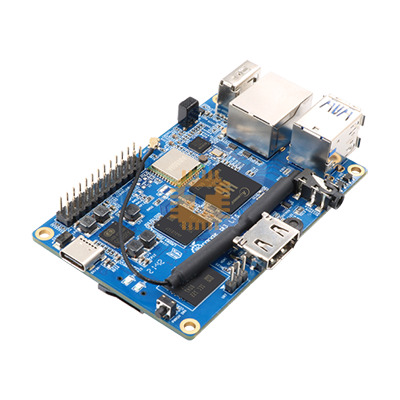

The Orange Pi 3 LTS is an open-source single-board computer with dual-band wireless WiFi and Bluetooth 5.0. It is for anyone who wants to start creating with technology- not just consuming it and a simple, fun yet useful tool that you can use to start taking control of the world around you.

Orange Pi 3 LTS uses the Allwinner H6 SoC, and has 2GB LPDDR3 SDRAM, 8GB EMMC Flash. It can run Android 9, Ubuntu, Debian. Orange Pi 3 LTS offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,1*USB 3.0, 2* USB2.0，etc. It is powered through Type-C. It is a good choice for applications that need strong networking perfomance.

Specifications:

• Model: Orange Pi 3 LTS
• CPU: Allwinner H6 Quad-Core 64-Bit (high-performance Cortex-A53)
• GPU: High-performance multi-core GPU Mali T720
            OpenGL ES3.1/3.0/2.0/1.1
            Microsoft DirectX 11 FL9_3
            ASTC(Adaptive Scalable Texture Compression)
            Floating point operation greater than 70 GFLOPS
• Memory: 2GB LPDDR3 (shared with GPU)
• Onboard Storage: Micro SD Card Slot

                                       8GB EMMC Flash

• Onboard Ethernet: YT8531C Chip / Support 10/100M/1000M Ethernet
• Onboard WiFi + Bluetooth: 859 Chip / Support IEEE 802.11 a/b/g/n/ac / Supports BT5.0
• Video Output: HDMI 2.0a / TV CVBS Output
• Audio Output: HDMI Output / 3.5mm Audio Port
• Power Supply: 5V3A Type-C
• Power Management Chip: AXP805
• USB Ports: 1 x USB 3.0 HOST, 2 x USB 2.0 HOST
• Low-level Peripherals: 26 pin connector with 1xI2C, 1xSPI, 1xUART &Multiple GPIO Ports
• Debug Serial Port: UART-TX / UART-RX & GND
• IR Receiver: Support IR Remote Control
• Supported OS: Android 9.0, Ubuntu, Debian
