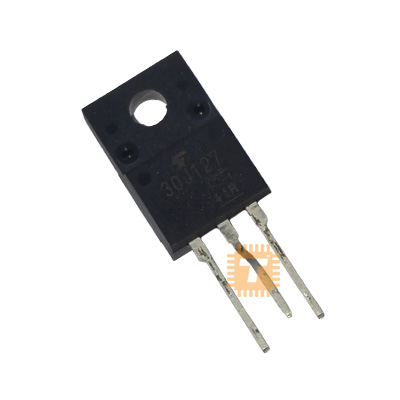

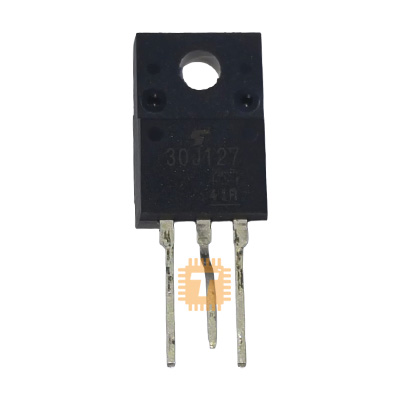

The GT30J127 (marked as 30J127) is a high-speed, high-voltage silicon N-Channel insulated gate bipolar transistor (IGBT) encapsulated in a fully isolated TO-220F (TO-220SIS) through-hole package. Specifically developed by Toshiba for resonant switching and energy recovery circuits in plasma display panels (PDP), induction heating (IH), and high-power pulse inverters, the 30J127 features a high collector-emitter breakdown voltage of 600V, a continuous DC collector current rating of 30A (with extreme pulsed current capability up to 200A), low saturation voltage (V_CE(sat)), and fast turn-off fall times.

Specifications

• Brand / Manufacturer: Toshiba / Industry Standard
• Part Number / Marking: GT30J127 / 30J127
• Transistor Type: High-Speed N-Channel IGBT
• Collector-Emitter Voltage (V_CES): 600V
• Gate-Emitter Voltage (V_GES): ±30V
• Continuous DC Collector Current (I_C): 30A (at T_C = 25°C)
• Pulsed Collector Current (I_CP): 200A (Repetitive peak / PDP sustain pulse)
• Collector-Emitter Saturation Voltage (V_CE(sat)): Typically 2.1V (Max 2.6V @ I_C = 120A, V_GE = 15V)
• Gate-Emitter Threshold Voltage (V_GE(th)): 3.0V to 6.0V (Typical 4.5V @ I_C = 1mA)
• Total Gate Charge (Q_g): Approx. 85nC (at V_GE = 15V)
• Turn-Off Fall Time (t_f): Approx. 60ns to 120ns (Ultra-fast switching)
• Collector Power Dissipation (P_C): 25W to 28W (at T_C = 25°C with heatsink)
• Operating Junction Temperature: -55°C to +150°C
• Package / Case: TO-220F / TO-220SIS (Fully Isolated Plastic Overmold, 3-Pin Through-Hole: Pin 1: Gate, Pin 2: Collector, Pin 3: Emitter)

Features

• High Breakdown Voltage (600V): Provides high voltage headroom and transient over-voltage safety in off-line mains and resonant inverter applications.
• Extreme Pulsed Current Capability (200A): Built to handle extreme peak current discharges and high-energy transient spikes without thermal breakdown.
• Fully Insulated TO-220F Package: Plastic overmolded tab eliminates the need for separate mica/silicone insulators when mounting directly to grounded heatsinks.
• Low Conduction Losses: Low V_CE(sat) ensures minimal internal power dissipation and heat generation during heavy continuous conduction cycles.
• Fast Turn-Off Performance: Low minority-carrier storage time allows fast transition times and lower switching losses in high-frequency circuits.

Common Applications

• Plasma Display Panels (PDP): Sustain (X-SUS / Y-SUS) driving stages and energy recovery circuits.
• Induction Heating (IH) & Cooktops: Primary high-frequency resonant inverter switching stages.
• High-Voltage Pulse Generators: High-power pulse discharge networks, strobe triggers, and laser power modules.
• DC-AC Inverters & Motor Drives: Switching stages in industrial frequency converters, UPS systems, and small motor drives.
• Solid-State High-Voltage Switches: High-voltage DC pulse switching and load isolation.

Usage Tips

• Gate Drive Voltage: Always drive the gate with a +15V (V_GE) gate signal to ensure complete saturation and achieve the lowest V_CE(sat); do not drive directly from low-voltage (3.3V/5V) logic pins.
• Gate Series Resistor: Place a 5.1Ω to 22Ω series resistor at the Gate (Pin 1) to eliminate parasitic high-frequency ringing and suppress gate voltage oscillation.
• Gate-to-Emitter Pull-Down: Connect a 10kΩ resistor across Gate and Emitter (Pin 3) to keep the IGBT securely in the OFF state during system reset or high-impedance driver conditions.
• External Freewheeling Diode: This IGBT does not contain an internal anti-parallel diode; when driving inductive loads or half-bridge circuits, always connect a fast-recovery freewheeling diode (e.g., US1M or MUR series) across Collector and Emitter.
• Thermal Paste Application: Apply a thin, uniform coating of thermal grease between the isolated TO-220F package and the heatsink to optimize heat transfer.
