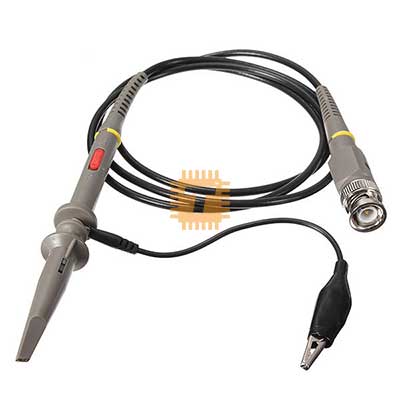

The P6100 is a high-quality, lightweight oscilloscope probe designed for universal compatibility with any oscilloscope featuring a standard BNC connector. It is an industry-standard accessory for engineers and hobbyists, offering a switchable attenuation ratio to accommodate a wide range of signal voltages and input impedances.

Specifications

• Bandwidth: DC to 100MHz
• Attenuation Ratio: 1X and 10X (Switchable on the handle)
• Input Resistance:
  • 1X: 1 MOhm
  • 10X: 10MOhm
• Input Capacitance:
  • 1X: 85pF – 120pF
  • 10X: 18.5pF – 22.5pF
• Compensation Range: 10pF – 30pF
• Maximum Input Voltage:
  • 1X: < 200V>
  • 10X: < 600V>
• Operating Temperature: -10°C to +50°C

Features

• Switchable Attenuation: The integrated slide switch allows for easy toggling between 1X (for low-level signals) and 10X (to reduce circuit loading and view higher voltages).
• Built-in Compensation: Features a trimmer capacitor in the BNC head. This allows you to "square up" your waveforms to match the specific input capacitance of your oscilloscope.
• Modular Accessories: Comes with a detachable hook tip for secure connections to components, and a standard alligator clip ground lead.
• Ergonomic Design: The slim body and flexible cable make it easy to maneuver around crowded PCBs and tight test points.
• Safety Insulated: The BNC connector is fully insulated, and the probe body is rated for safe use in standard electronic debugging.
