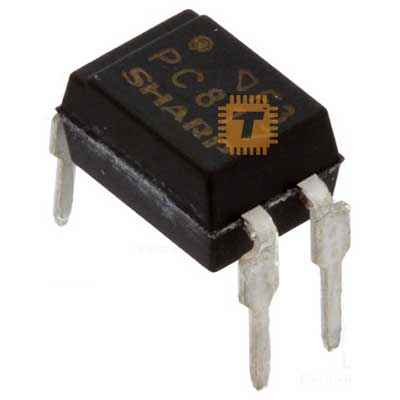

PC817X Series contains an IRED optically coupled to a phototransistor.

It is packaged in a 4pin DIP, available in wide-lead spacing option and SMT gullwing lead-form option.

Input-output isolation voltage(rms) is 5.0kV. Collector-emitter voltage is 80V(*) and CTR is 50% to 600% at input current of 5mA.

Features:

• 4pin DIP package
• Double transfer mold package (Ideal for Flow Soldering)
• High collector-emitter voltage (VCEO:80V(*))
• Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V)
• Several CTR ranks available
• High isolation voltage between input and output (Viso(rms) : 5.0 kV)

Package: DIP-4

Link to datasheet: https://www.farnell.com/datasheets/73758.pdf
