Specification :

• Usage : 18650 Battery Spot Welder
• Dimensions : 110*80*22.6mm
• Max. Welding Thickness : 0.25MM
• Rated Capacity : 5000mAH/18.5W

Description:

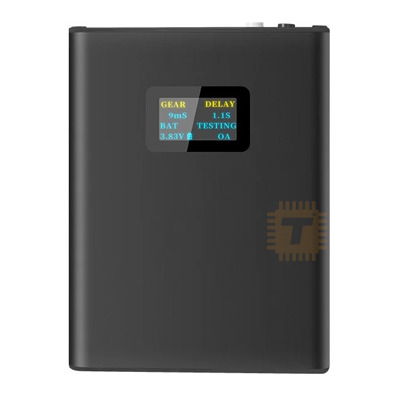

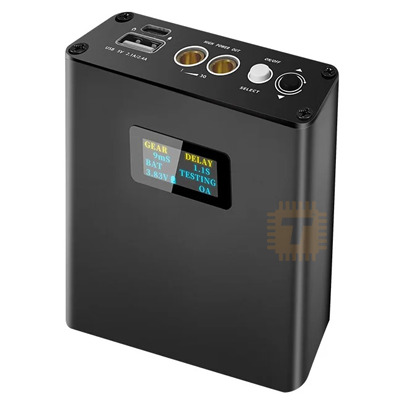

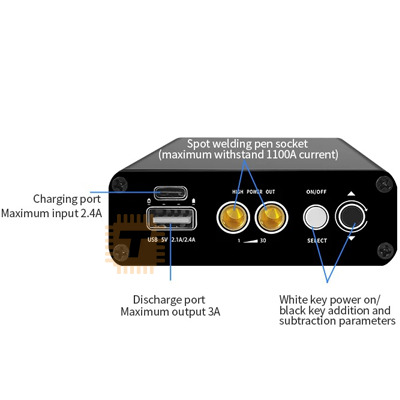

GEAR: gear adjustment, short press the white button to switch modes, the arrow points to xxms, long press the black button to adjust the gear, divided into 30 gears

DELAY: Delay adjustment, the adjustment method is the same as the gear

BAT: battery power display, real-time monitoring of battery voltage, beeping sound to pre-warning power when low battery, automatic shutdown.

TESTING: The actual measured current value output by the soldering pen.

√ : indicates that the welding is normal

x : indicates short circuit protection

This machine is equipped with short-circuit protection to monitor each solder joint
