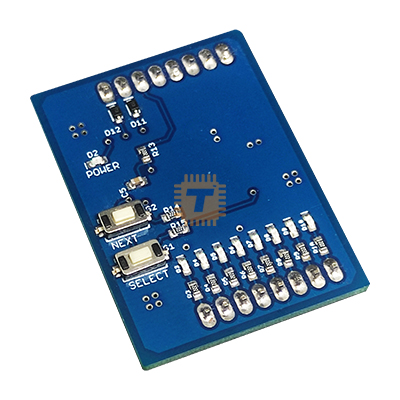

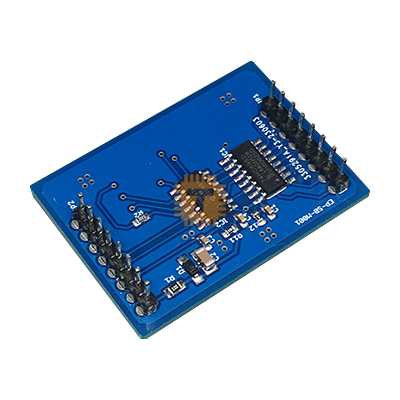

This module comes with 25 pre-programmed patters and there are 50 memory slots to program.

Features:

• 24 pre programmed patterns to select.
• User can select one or more patterns to run.
• Running speed can be controlled.
• Pattern loop count can be edited.
• 50 slot pattern memory.

How to Select Patterns:

• (*Assumes you have switched into programming mode*)
• (*Assumes you are selecting second pattern with 4 loops*)
• Keep pressing NEXT button until pattern stops.
• Release NEXT button will go into second pattern.
• Keep pressing SELECT button until pattern stops.
• Release SELECT button. You have selected the pattern.
• Single LED will light up showing loop count.
• You can set 8 loops maximum.
• Press-Release NEXT button to count up loops.
• Press-Release SELECT button to select loop count.
• Returns to pattern display again.
• Proceed using NEXT button.
• (*switch power off-on to go back to RUN mode*)

Absolute Maximum Ratings:

• Supply Voltage: 8V
• Switch Input: 20V
• Output Source/Sink: 20mA (Single channel)
• Reverse Voltage: 3V

Recommended Operating Conditions:

• Supply Voltage: 4V-6V
• Switch Input: 1V-15V
• Output Source/Sink: 10mA (Single channel)
• Reverse Voltage: 1V

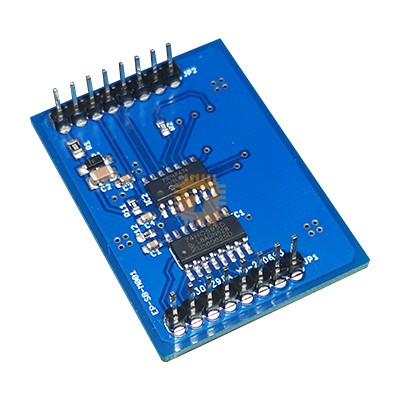

Pin Descriptions:

• Pin 1: SELECT button input.
• Pin 2: NEXT button input.
• Pin 3: Speed control input.
• Pin 4: RUN/PROGRAM Mode indicator output.
• Pin 5: GPIO2 not used.(used for programming the module)
• Pin 6: Reset input.
• Pin 7: Supply GND
• Pin 8: Supply +V
• Pin 9 to 16: Output 1 to 8

Pin Voltage Level:

• Pin 1 (Digital):  Active low. 0V to 15V.
• Pin 2 (Digital): Active low. 0V to 15V.
• Pin 3 (Analog): 0V to 5V.
• Pin 4 (Digital): PROGRAM-0V, RUN-5V output.
• Pin 5 (Digital) 0V
• Pin 6 (Digital): Active low. 0V to 5V.
• Pin 7 (Analog): 0V
• Pin 8 (Analog) +4V to +6V
• Pin 9 to 16 (Digital): 0V to 5V. 10mA each.

How to program: User guide
