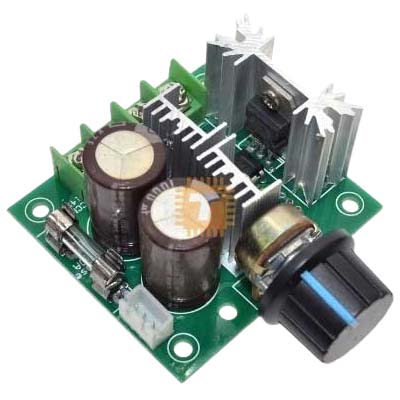

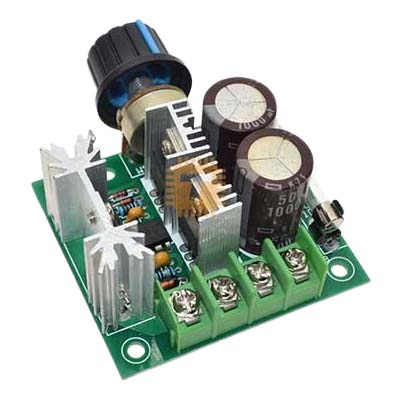

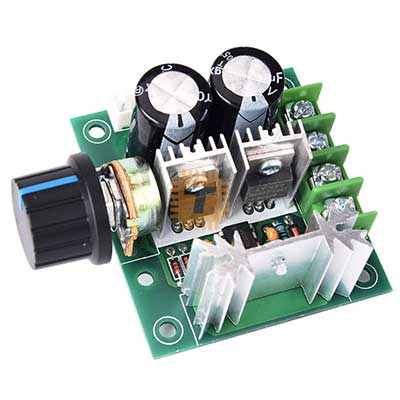

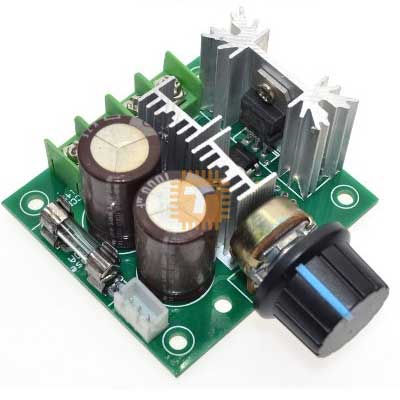

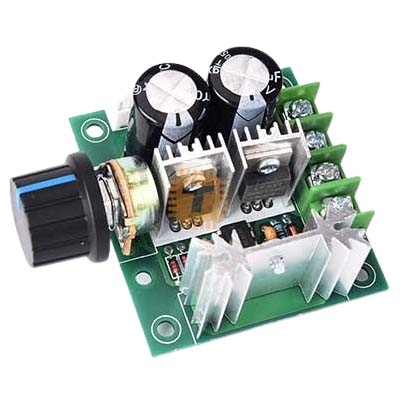

DC Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%.

The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load.

The circuit also includes a 10A fuse, with reverse connection of power supply and control voltage over-voltage protection function.

Specifications:

• Input supply voltage: 12V-40VDC
• The maximum output power: 0.01-400W
• The maximum continuous output current: 8A
• The overload and short circuit protecting current is 10A.
• PWM frequency: 13kHz
• Duty Cycle adjustable: 10%-100%
• The 10A fuse with reverse connection of power supply and control voltage over-voltage protection function Specifications:
• Item size:60*55*28mm
