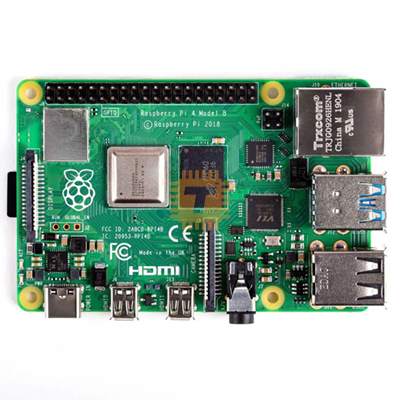

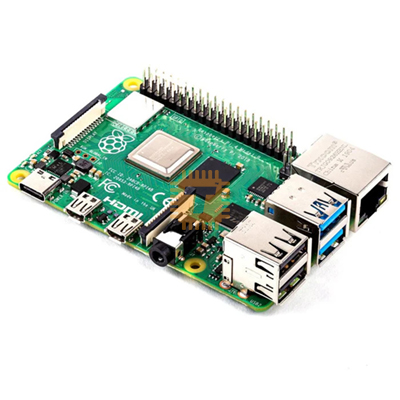

The Raspberry Pi 4 Model B offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation boards, while retaining backwards compatibility and similar power consumption. The Raspberry Pi 4 Model B single-board computer provides desktop performance comparable to entry-level x86 PC systems.

This product's key features include a high-performance 64-bit quad-core processor, dual-display output via two Micro HDMI ports, up to 4K resolution, hardware video decoding at up to 4Kp60, up to 2GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability.

Due to the higher power requirements, the Raspberry Pi 4 requires a 3.0A USB-C power supply (sold separately). If you have an existing power supply that is rated at 3.0A, you may utilise a MicroUSB to USB-C adapter to utilize your existing MicroUSB power supply to power the Raspberry Pi 4 Model B.

The standard HDMI port that were part of previous generation Raspberry Pi generation boards is replaced on the Raspberry Pi 4 by two Micro HDMI ports to provide dual monitor support. A 4K60P Micro HDMI to HDMI cable is required (or two cables for dual monitor operation).

Specifications:

• Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz
• 2GB LPDDR4-3200 SDRAM
• 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
• Gigabit Ethernet
• 2 USB 3.0 ports; 2 USB 2.0 ports.
• Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
• 2 × micro-HDMI® ports (up to 4kp60 supported)
• 2-lane MIPI DSI display port
• 2-lane MIPI CSI camera port
• 4-pole stereo audio and composite video port
• H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
• OpenGL ES 3.1, Vulkan 1.0
• Micro-SD card slot for loading operating system and data storage
• 5V DC via USB-C connector (minimum 3A*)
• 5V DC via GPIO header (minimum 3A*)
• Power over Ethernet (PoE) enabled (requires separate PoE HAT)
• Operating temperature: 0 – 50 degrees C ambient
