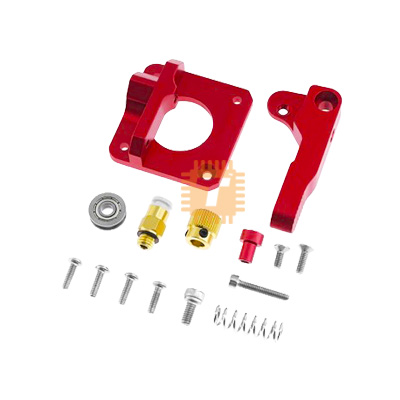

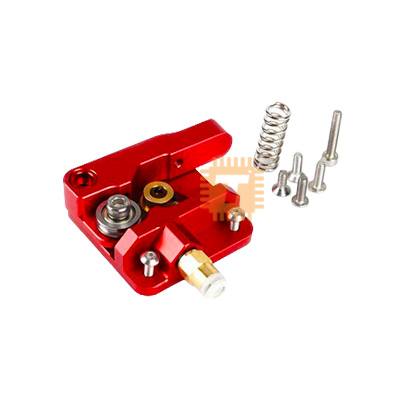

The Red MK8 All-Metal Aluminum Extruder (Right Hand) is an upgraded direct-drive or Bowden filament feeder mechanism designed to replace failure-prone stock plastic extruders on desktop FDM 3D printers. Machined from high-strength CNC aluminum alloy with an eye-catching red anodized finish, this right-handed feeder assembly provides reliable gripping force, adjustable spring tension, and wear-resistant filament routing for standard 1.75mm filaments.

Specification

• Extruder Type: MK8 Direct / Bowden Feed Mechanism
• Orientation Handedness: Right-Handed (Right-Side Tension Lever Arm)
• Filament Diameter Compatibility: 1.75mm
• Main Body Material: High-Strength CNC Machined Aluminum Alloy
• Drive Gear Component: High-Traction 40-Tooth Brass / Steel Drive Gear
• Idler Bearing: Precision U-Groove Ball Bearing (624ZZ Profile) for smooth filament guidance
• Pneumatic Fitting Standard: PC4-M6 Threaded Push-Fit Fitting (for 4mm OD PTFE Bowden Tube)
• Motor Compatibility: Standard NEMA 17 Stepper Motors (42mm x 42mm faceplate profile)
• Surface Finish: Vibrant Red Anodized Protective Coating (Corrosion and scratch resistant)
• Printer Compatibility: Direct fit for Creality Ender-3, Ender-3 Pro, Ender-3 V2, Ender-5 series, CR-10 series, CR-10S, Anet A8, Wanhao Duplicator, Tevo Tornado, and most NEMA 17 MK8-based 3D printers.

Features

• Durable All-Metal Construction: Eliminates the common cracking and flexing issues found in factory plastic tension arms, ensuring consistent filament grip and preventing mysterious under-extrusion over extended print runs.
• Adjustable Spring Tension System: Features a high-tensile steel spring paired with an adjustable tensioning screw, allowing precise control over filament clamping force to feed rigid and semi-flexible filaments without crushing them.
• Constrained Filament Path: Machined with a tight-tolerance entry and exit channel that supports the filament closely, reducing bending and buckling during rapid retractions.
• Smooth Idler Tracking: Employs a low-friction U-groove ball bearing that maintains uniform contact pressure against the drive gear teeth, ensuring smooth filament rotation without slippage.
• Integrated PC4-M6 Coupler Port: Includes an M6 threaded output port pre-fitted for a PC4-M6 pneumatic push-fit connector, enabling quick and secure attachment of standard 4mm outer-diameter Bowden tubes.

Common Applications

• Essential 3D Printer Reliability Upgrade: Replacing weak or cracked factory plastic extruder assemblies on Creality Ender-3, CR-10, and similar open-source 3D printers.
• Semi-Flexible Filament (TPU) Printing: Providing the rigid support and tight mechanical path needed to feed flexible materials without tangling around the gear.
• High-Speed & Heavy-Retraction Jobs: Maintaining consistent, slip-free filament flow during complex prints with frequent retract sequences and high volumetric extrusion rates.

Professional Installation and Maintenance Tips

• Ensure Free Movement of the Pivot Arm: When bolting the red aluminum tension arm onto the base plate, avoid over-tightening the pivot screw. The arm must pivot smoothly on its brass sleeve bushing; over-torquing will cause the lever to bind and lead to severe under-extrusion.
• Align Drive Gear with Filament Channel: Sight down the filament entry hole while tightening the grub screws onto the NEMA 17 motor shaft to ensure the drive gear teeth are centered with the guide hole and idler bearing groove.
• Tune Spring Tension Carefully: Set the spring compression just tight enough to prevent gear slipping or grinding. Excessive clamping pressure can deform 1.75mm filament into an oval shape, causing high friction inside the Bowden tube.
• Calibrate Extruder E-Steps: After installing the new all-metal assembly, perform an E-step calibration test (commanding 100mm of filament extrusion) to verify and adjust the steps/mm value in your printer firmware for exact extrusion accuracy.
