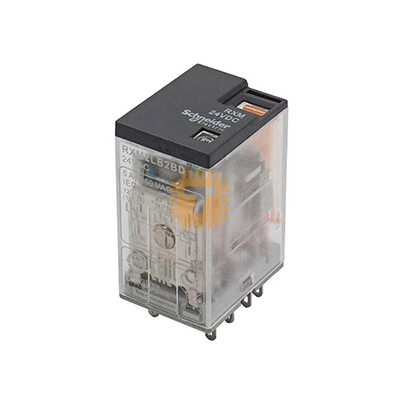

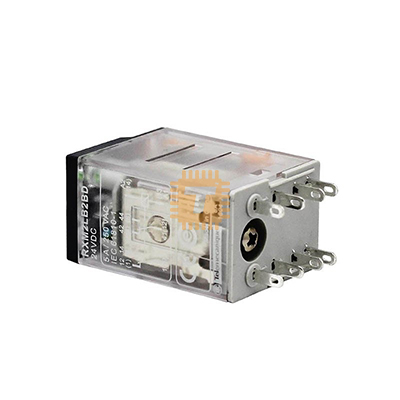

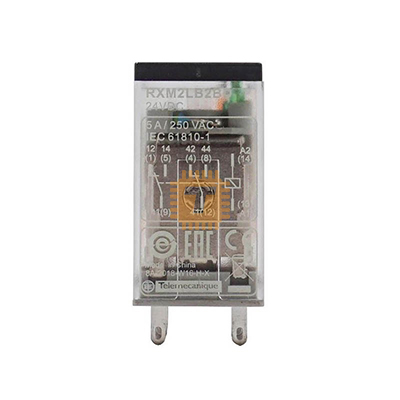

The Schneider Electric RXM2LB2BD is a high-reliability plug-in control relay from the Zelio RXM series, designed for industrial automation, control panels, and machine interfaces. With a 24V DC coil, 2 Normally Open (NO) + 2 Normally Closed (NC) contacts, and a 5A switching capacity, this relay ensures dependable switching performance in demanding applications.

Built to Schneider Electric’s industrial standards, it offers long electrical and mechanical life, making it ideal for continuous operation in control and automation systems.

Key Features

• Industrial-Grade Plug-In Relay: Designed for control panels and automation systems
• 24VDC Coil Voltage: Compatible with standard PLC and control power supplies
• 2NO + 2NC Contacts: Flexible switching for complex control logic
• 5A Contact Rating: Handles moderate power loads reliably
• High Electrical & Mechanical Endurance: Ensures long service life
• Status Indicator: LED indication for easy visual monitoring
• Secure & Reliable Switching: Stable contact performance with low contact resistance

Technical Specifications

• Manufacturer: Schneider Electric
• Series: Zelio RXM
• Model: RXM2LB2BD
• Relay Type: Plug-in electromechanical relay
• Coil Voltage: 24V DC
• Contact Configuration: 2NO + 2NC (DPDT)
• Rated Switching Current: 5A
• Rated Switching Voltage: 250VAC
• Coil Consumption: Low power DC coil

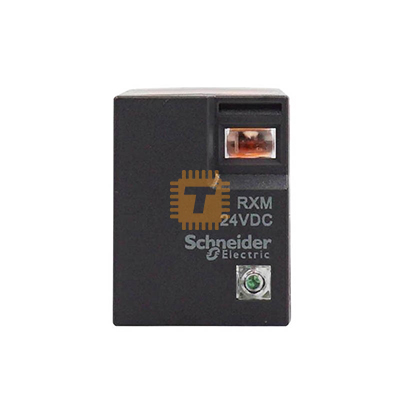

• Indicator: Built-in LED

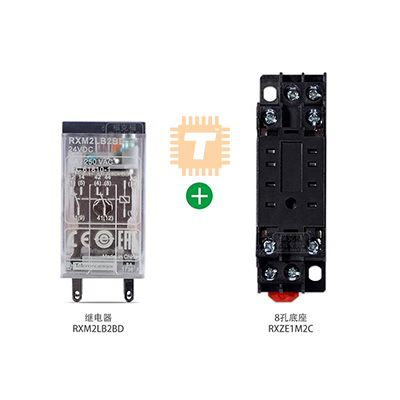

• Mounting: Plug-in (relay socket required)
• Operating Environment: Industrial control panels

Applications

• PLC output switching
• Industrial automation and control panels
• Machine control systems
• HVAC and building automation
• Electrical interface and signal isolation
