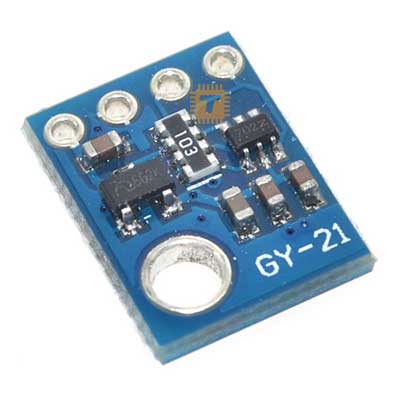

The Si7021 I2C Humidity and Temperature Sensor is a monolithic CMOS IC integrating humidity and temperature sensor elements, an analog-to-digital

converter, signal processing, calibration data, and an I2C interface. The patented use of industry-standard, low-K polymeric dielectrics for sensing humidity enables the construction of low-power, monolithic CMOS Sensor ICs with low drift and hysteresis, and excellent long term stability

The humidity and temperature sensors are factory calibrated, and the calibration data is stored in the on-chip non-volatile memory. This ensures that the sensors are fully interchangeable, with no recalibration or software changes required

The Si7021 is available in a 3x3 mm DFN package and is reflow solderable. It can be used as a drop-in upgrade for existing RH/temperature sensors in 3x3 mm DFN-6 packages, offering precision sensing over a wider range and lower power consumption. The optional factory-installed cover offers a low profile, convenient means of protecting the sensor during assembly (e.g., reflow soldering) and throughout the life of the product, excluding liquids (hydrophobic/oleophobic) and particulates

The Si7021 offers an accurate, low-power, factory-calibrated digital solution ideal for measuring humidity, dew-point, and temperature, in applications ranging from HVAC/R and asset tracking to industrial and consumer platforms

Features:

• Precision Relative Humidity Sensor
• ± 3% RH (max), 0-80% RH
• High Accuracy Temperature Sensor
• ±0.4 °C (max), -10 to 85 °C
• 0 to 100% RH operating range
• Up to -40 to +125 °C operating range
• Wide operating voltage (1.9 to 3.6 V)
• Low Power Consumption 150 A active current
• 60 nA standby current
• Factory-calibrated
• I2C Interface
• Integrated on-chip heater
• 3x3 mm DFN Package
• Excellent long term stability
• Optional factory-installed cover
• Low-profile
• Protection during reflow
• Excludes liquids and particulates
