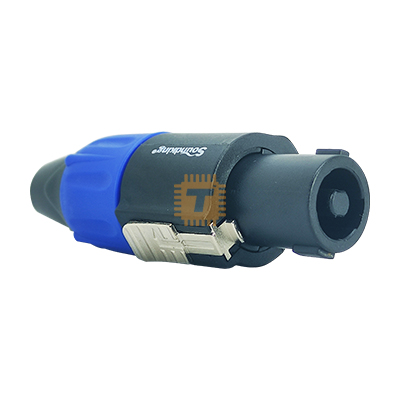

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Features:

• Up to 30 A rms current rating
• Cable strain relief for 6 - 15 mm cable O.D.
• Glass reinforced material for insert and housing, longlasting and dependable
• Unique chuck type strain relief
• Reliable and robust, easy and fast to assemble
• Accurate and dependable twist lock latching system "Quick Lock"
• User friendly latch design for easy handling
• Contact resistance ≤ 3 mΩ (after lifetime)
• Dielectric strength 4 kVdc (peak)
• Insulation resistance > 1 GΩ (after dampheat)
• Rated current per contact 30 A rms continuous
• Rated current per contact 40 A audiosignal, duty cycle 50 %
• Rated voltage 250 V ac

Attention speakON is NOT to be used as an AC mains or power supply connector!
