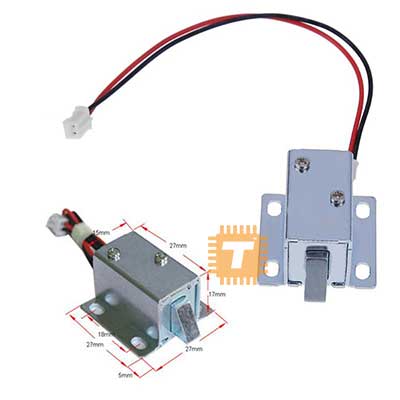

Specification:

• Voltage: 4.5 - 12VDC*
• Current: 0.6A
• Size: 53 x 26 x 23mm
• Weight: 160g
• Latch telescopic length: 10mm
• Energized forms: intermittent;
• Unlocking time: 1s
• Continuously energized <10S>
• Temperature: -40 ~ +50

Instructions:

• The red wire is connected to positive terminal and the green wire is connected to negative terminal
• Turning the current on will unlock and turning it off will lock the mechanism

*NOTE: Refer to the product label to find the exact voltage. It is always recommended to supply less voltage (For example 6VDC instead of 12VDC) and see whether the required functionality is achieved. If found the coil getting heated up, reduce voltage and try.
