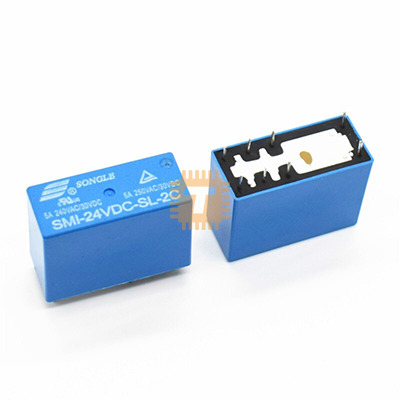

The Songle SMI-24VDC-SL-2C is a 24V DC coil electromagnetic relay featuring a Double-Pole Double-Throw (DPDT) configuration. Rated for 5A at 250VAC or 30VDC, it provides reliable and precise switching for industrial, automation, and electronic control applications. Compact and versatile, it is ideal for PCB mounting and control circuits.

Key Features:

• Coil Voltage: 24V DC
• Contact Configuration: DPDT (Double-Pole Double-Throw)
• Contact Rating: 5A @ 250VAC / 30VDC
• Compact & Durable: Reliable for repeated switching operations
• PCB Mount Compatible: Easy integration into electronic circuits
• Versatile Applications: Industrial automation, machinery control, and electronic projects

Specifications:

• Model: SMI-24VDC-SL-2C
• Coil Voltage: 24V DC
• Contact Current: 5A
• Contact Voltage: 250VAC / 30VDC
• Poles/Throws: 2PDT (DPDT)
• Mounting Type: PCB Through-Hole
• Insulation Resistance: ≥100MΩ (500VDC)
• Dielectric Strength: 2500VAC (coil to contact)
• Operate Time: ≤10ms
• Release Time: ≤5ms

Applications:

• Industrial control and automation circuits
• PCB-based electronic switching
• Motor control and relay logic circuits
• Home and commercial electrical systems
• DIY electronics and prototyping projects
