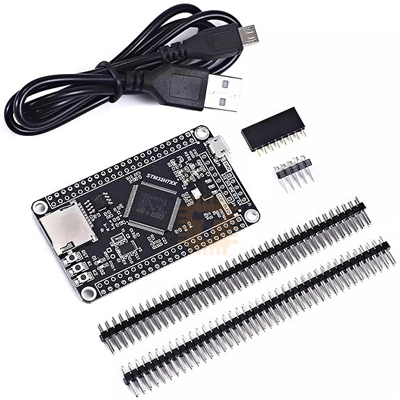

High-performance 32-bit ARM development board powered by the STM32H743VIT6 MCU. Ideal for advanced embedded systems, real-time control, and high-speed data processing applications.

Specifications

• Microcontroller: STM32H743VIT6 (ARM Cortex-M7 @ 480 MHz)
• Flash Memory: 2 MB
• RAM: 1 MB (split across SRAM blocks)
• Package: LQFP100 (100 pins)
• Operating Voltage: 1.71V – 3.6V
• Interfaces: USB OTG, UART, USART, CAN, SPI, I2C, Ethernet, SDIO
• ADC/DAC: 3 × 16-bit ADCs, 2 × 12-bit DACs
• Timers: 22 total (including PWM, motor control, watchdogs)
• Debug Interface: JTAG/SWD
• Display Support: TFT LCD interface
• Operating Temp: -40°C to +85°C

Features

• Double-precision FPU and DSP instruction support
• External memory interface (QSPI, SDRAM, NOR/NAND)
• USB-powered or external DC input
• Onboard voltage regulators (3.3V & 5V)
• Access to all GPIOs via pin headers
• Compatible with STM32CubeIDE, STM32CubeMX, FreeRTOS
• Ideal for industrial control, IoT edge devices, motor control, and HMI systems

Software Support

• STM32CubeIDE
• STM32CubeMX (pin config, clock setup, code generation)
• HAL/LL Drivers
• FreeRTOS compatible
• CMSIS DSP & Neural Network Libraries

Applications

• Real-time industrial control
• High-speed data acquisition
• Audio processing
• IoT edge devices
• Motor control
• Advanced HMI
