Specification:

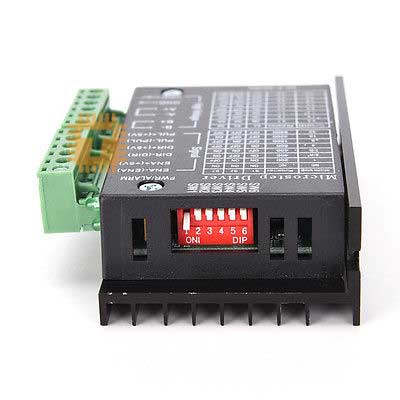

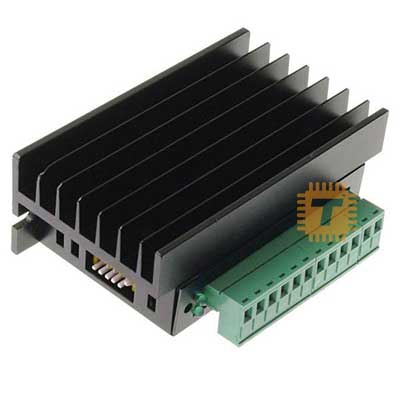

• Model: TB6600
• Compatible Motors: Nema 17/23/34 (42/57/86 Stepper Motor)
• Control Signal: 3.3-5VDC (Use correctly calculated resistors for higher voltages. Watch videos below)
• Subdivision Accuracy: 1-32
• Output Current: 4A
• Voltage: 9 - 40VDC

Features:

• H bipolar constant current drive bridge
• High-speed optocoupler isolation input signal
• Built-in temperature protection and over-current protection
• Automatically, half of the flows reduce fever
• Motor noise optimization function
• Small volume, space-saving

NOTE: All the common stepper motor drivers are having 5V signal pins. If you want to connect a PLC or any other high voltage output device, watch the following videos carefully and wire the resistors correctly.

Video 1

Video 2

Video 3
