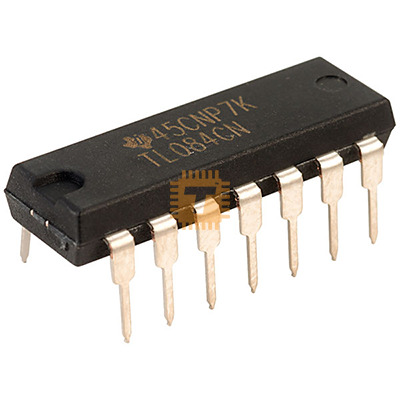

The TL08xH (TL081H, TL082H, and TL084H) family of devices are the next-generation versions of the industry-standard TL08x (TL081, TL082, and TL084) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1 mV, typical), high slew rate (20 V/µs), and common-mode input to the positive supply. High ESD (1.5 kV, HBM), integrated EMI and RF filters, and operation across the full –40°C to 125°C enable the TL08xH devices to be used in the most rugged and demanding applications.

Features:

• High slew rate: 20 V/µs (TL08xH, typ)
• Low offset voltage: 1 mV (TL08xH, typ)
• Low offset voltage drift: 2 µV/°C
• Low power consumption: 940 µA/ch (TL08xH, typ)
• Wide common-mode and differential voltage ranges
  • Common-mode input voltage range includes VCC+
• Low input bias and offset currents
• Low noise: Vn = 18 nV/√Hz (typ) at f = 1 kHz
• Output short-circuit protection
• Low total harmonic distortion: 0.003% (typ)
• Wide supply voltage: ±2.25 V to ±20 V, 4.5 V to 40 V

Package: PDIP-14

Link to datasheet: Datasheet
