Functions

1. Under-voltage protection: Adjustable range: 210V-145V (default: 170V); can be disabled
2. Over-voltage protection: Adjustable range: 230V-300V (default: 270V); can be disabled
3. Over-current protection: Adjustable range: 1A-63A (default: 40A)
4. Reconnection time (delay time): Adjustable range: 3-300s (default: 30s)
5. Voltage meter
6. Ammeter

Features

• Turn off over-voltage protection, and press the up button when it reaches 300V
• Turn off low voltage protection, and press the button below when it reaches 150V
• When off, the product can record KWh, over-voltage, under-voltage, and over-current values
• When the V LED flashes, it means over-voltage or under-voltage protection is triggered
• When an LED flashes, it means over-current protection is active

Specification

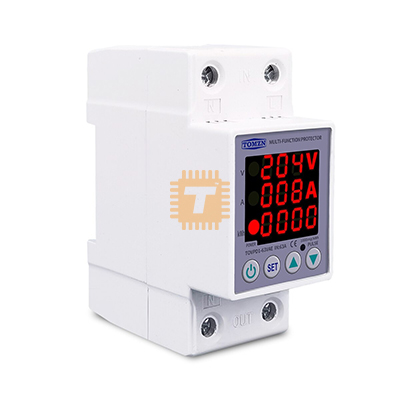

1. Model number: TOVPD1-63VEA
2. Rated voltage: 220V
3. Type: Mini
4. Can be customized: Yes
5. Over Voltage adjustable range: 230-300V (adjustable).
6. Under Voltage adjustable range: 210-150V (adjustable).
7. Overcurrent adjustable range: 1-63A (adjustable).
8. Frequency: 50Hz / 60Hz.
