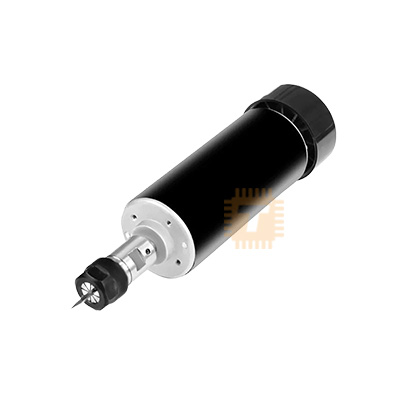

The TWO TREES 500W Air-Cooled Spindle Kit is a high-power, high-torque industrial upgrade designed specifically for TWO TREES CNC routers (including the TTC450 Pro, TTC450 Ultra, TTC6050, TTC-H40, and TTC-H80). Delivering up to 12,000 RPM, this spindle replacement replaces lower-power stock rotary tools (like 80W - 150W motors), allowing desktop CNC machines to mill denser materials like aluminum, copper, hardwood, acrylics, and PCB boards at significantly faster feed rates with clean, burr-free edges.

Specification Matrix

• Motor Output Power: 500W Peak
• Maximum Rotational Speed: Up to 12,000 RPM
• Cooling Mechanism: Integrated forced air-cooling fan
• Operating Voltage: 48V DC (Powered via included dedicated external speed controller)
• Collet Chuck System: ER11 Precision Collet Set (Includes standard 3.175mm / 1/8-inch collet)
• Spindle Motor Diameter:52mm (Standard industrial mounting diameter)
• Spindle Radial Runout: ≤ 0.01 - 0.03mm (High concentricity for fine detail milling)

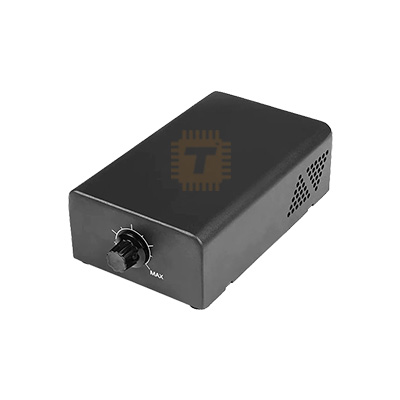

• Speed Controller (Power Supply): External AC-to-DC speed controller governor with manual potentiometer knob + external PWM interface support
• Machine Compatibility: Direct drop-in upgrade for TWO TREES TTC450 Pro, TTC450 Ultra, TTC6050, TTC-H40, and TTC-H80

Core Hardware Features

• High Torque & Low Runout Architecture: Driven by a high-grade copper armature and precision ball bearings, this 500W motor delivers high low-end torque. This prevents the bit from stalling when carving deep passes into hard materials like solid brass or thick hardwoods.
• ER11 Precision Collet System: Uses the industry-standard ER11 clamping nut system, allowing you to easily swap bits with shank diameters ranging from 1mm up to 7mm (including standard 1/8" and 1/4" CNC end mills).
• Speed Governor with Manual & PWM Controls: The kit includes a dedicated adjustable power supply unit. You can adjust spindle speeds manually using the front-panel rotary knob or wire the control port directly to your CNC mainboard’s PWM / 0-10V terminal to allow G-code software (like Candle or Light Burn) to automate spindle speeds (S-code commands).
• Forced Air Cooling Engine: Features a built-in fan mounted on the upper motor shaft. This continuously draws cool air through the metal housing, dissipating heat and allowing the spindle to run continuously for long 3D carving jobs without overheating.

Common Applications

• Non-Ferrous Metal Milling: Precision routing, pocketing, and drilling into non-ferrous metals like aluminum (6061/7075), brass, and copper plates.
• Hardwood 3D Relief Carving: Executing deep 3D relief carvings and sign-making on dense woods like teak, mahogany, oak, and walnut without scorching the wood.
• Prototyping & PCB Isolation Milling: Milling clean, trace isolation paths on copper-clad fiberglass (FR4) PCBs with fine micro-endmills.
• Engineering Plastics Fabrication: Cutting clean edges through tough polymers like Acrylic, POM (Delrin), Nylon, and ABS without melting the material.

Professional Installation & Deployment Tips

• Verify Mount Bracket Diameter Compatibility: The spindle body has a 52mm outer diameter. Depending on your exact TWO TREES machine model and generation (e.g., TTC450 base vs. Pro/Ultra variants), ensure your Z-axis spindle carriage is equipped with a 52mm mounting clamp, or use the adapter sleeve provided in the upgrade kit to prevent mechanical play.
• Properly Ground the Spindle Body: High-power brushed spindle motors can generate static electrical noise. Always run an earth ground wire from the outer metal casing of the spindle to your main power ground. This prevents Electro-Magnetic Interference (EMI) from bleeding into the limit switch lines or USB serial connections, which can cause mid-job disconnects.
• Observe ER11 Collet Insertion Rules: Never tighten an empty ER11 nut onto the spindle shaft, as this can permanently distort the metal collet. Additionally, always snap the ER11 spring collet into the clamping nut first until it clicks into place before inserting the end mill shank and threading it onto the spindle.
• Manage Chip Clearing on Deep Metal Passes: When milling soft metals like aluminum, pair the higher torque of the 500W spindle with an external air-blast nozzle or lubricant (like WD-40 or isopropyl alcohol). This clears chips from the cutter flutes, preventing hot aluminum from welding to the end mill bit at high RPMs.
