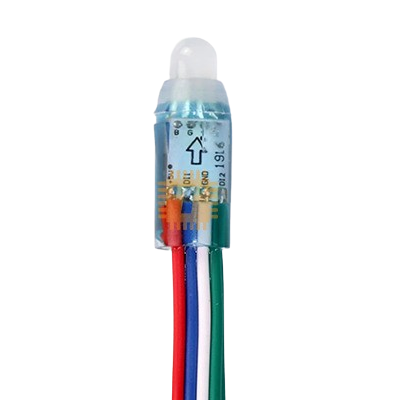

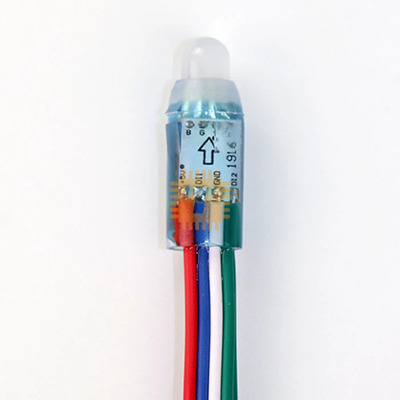

The UCS1916 Full Color Pixel LED Bulb Set is a high-quality, addressable LED solution designed for vibrant lighting effects and dynamic displays. It features 50 individually controllable RGB LEDs, making it ideal for advertising, signage, and decorative lighting.

Features:

• Individually Addressable Pixels: Each LED can display different colors independently.
• Breakpoint Continuity: Ensures stable operation even if one LED fails.
• Wide Application: Suitable for advertisement boards, channel letters, commercial signs, and message displays.
• Durable & Weatherproof: IP67-rated for outdoor use.
• Distance: More stable over long distances (Better than WS2811)

Specifications:

• IC type: UCS1916
• Power Consumption: 0.3W
• Luminous flux: 30lm
• Emitting Color: Full color
• Input Voltage: 5VDC
• Protection grade: IP67
• Certification: CE & ROHS
• Beam Angle: 180°
• Life time: > 50000 hrs
• Size: 12mm (diameter)
• Standing Current: 60mA (Typ.), 80mA (Max.)
• Working temperature: -20c to +50c
• Body material: PVC

The connections are similar to WS2801 (4-wire version). See page 12 onwards in the following doc for wiring and example program.

Connections and programming

Just give power from an external high current 5V power supply (5A or 10A is recommended). Make sure to connect Arduino ground to the same ground of the pixel LED set. Then connect Data and Clock pins to pin 2 and 3 of the Arduino. Add the library as per the above doc and run the example program.
