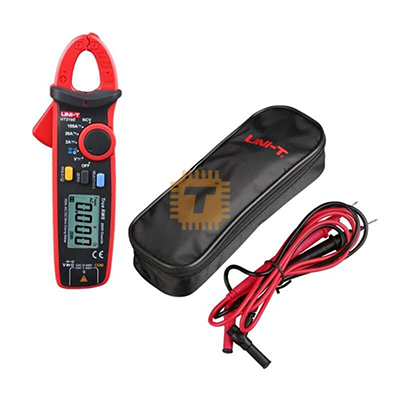

The UNI-T UT-210E is a compact and highly accurate digital mini clamp meter designed for safe, non-contact current measurement and comprehensive electrical diagnostics. With its high-sensitivity clamp capable of measuring low AC/DC currents, the UT-210E is ideal for electricians, technicians, and engineers working with low-power electronics, automotive systems, and household electrical installations.

Its lightweight, ergonomic design combined with advanced measurement capabilities makes it a reliable everyday tool for professional and educational use.

Key Features

• AC & DC Current Measurement: Measures current without breaking the circuit
• High Sensitivity Clamp: Ideal for low-current applications
• Compact Mini Design: Easy to carry and operate in tight spaces
• Multifunction Meter: Measures voltage, resistance, continuity, and more
• Clear Digital Display: Easy-to-read LCD with backlight
• Safety Focused: Designed for safe, non-intrusive electrical testing
• Auto Power-Off: Conserves battery life

Technical Specifications

• Brand: UNI-T
• Model: UT-210E
• Meter Type: Digital Mini Clamp Meter
• Current Measurement:
  • AC Current: Up to 100A
  • DC Current: Up to 100A
• Voltage Measurement:
  • AC Voltage: Up to 600V
  • DC Voltage: Up to 600V
• Resistance Range: Up to 20MΩ
• Continuity Test: Audible buzzer
• Display: LCD with backlight
• Jaw Opening: Approx. 17mm
• Power Supply: 2 × AAA batteries
• Safety Rating: CAT III 600V
• Operating Temperature: 0°C to 40°C

Applications

• Electrical installation and maintenance
• Automotive electrical diagnostics
• Low-current circuit testing
• Home and industrial electrical troubleshooting
• Educational and laboratory use

User Manual
