Universal LCD TV Main Board for 24 - 50 inch (PS0078) Products
We are sorry but the product is out of stock, please check back after few days.
| Name | Universal LCD TV Main Board for 24 - 50 inch |
| Code | PS0078 |
| Price | Rs.4,570.00 |
| In Stock | No |
| Package | POW |
Product Details

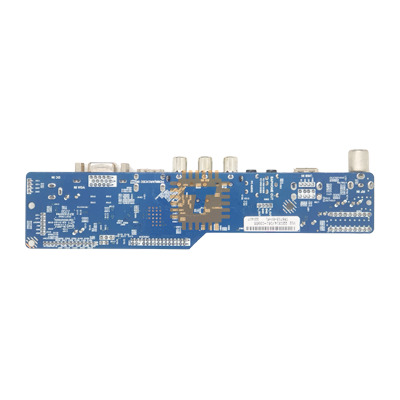

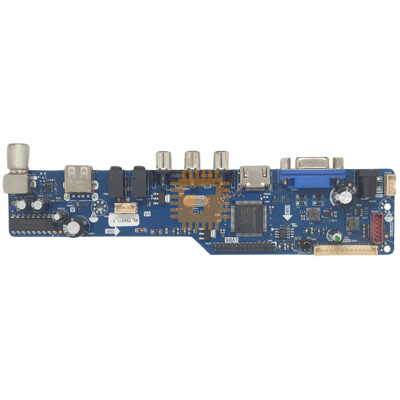

The VS.T56U11.2 board is very comfortable to install from 14.5 to 50″ LED TVs which consists of a user-friendly menu option and a remote operating system. The resolution can be configured by using the resolution code for matching resolution in-between circuit and panel.
Specifications:
- TV System: PAL/SECAM/NTSC (RF connector maybe different)
- Panel Resolution: 800X600 – 1920X1200, etc.
- Panel Interface: Single or Dual LVDS
- Input Ports: PC VGA, Audio, HDMI, USB, RF tuner, AV (or YPbPr)
- Output Ports: earphone out, audio output (optional)
- OSD Language: English, French, Portuguese, Spanish, Thai, Russian, etc.
- Audio amplifier: 2X3W (8 ohm)
- USB port multimedia formats: audio, video, picture, text
- USB port supports firmware upgrade
Service Menu Code: 1147
Resolution Codes:
| Resolution | Step1 | Step2 |
|---|---|---|
| 1366×768 | SOURCE 20081 | SOURCE 31181 |
| 1024×768 | SOURCE 20082 | SOURCE 31182 |
| 1280×1024 | SOURCE 20083 | SOURCE 31183 |
| 1440×900 | SOURCE 20084 | SOURCE 31184 |
| 1600×900 | SOURCE 20085 | SOURCE 31185 |
| 1680×1050 | SOURCE 20086 | SOURCE 31186 |
| 1920×1080 | SOURCE 20087 | SOURCE 31187 |
