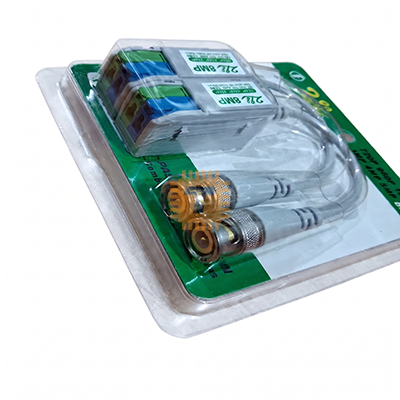

The Original 8MP (4K) Passive HD Video Balun Transceiver (Pair for HD-CVI / HD-TVI / AHD / CVBS) is a high-definition passive impedance-matching transmission module engineered to transmit real-time analog and high-definition CCTV video signals over unshielded twisted pair (UTP) Cat5e/Cat6 network cabling. By converting the 75Ω unbalanced video signal from standard BNC coaxial connections to a 100Ω balanced differential signal across twisted pair wire, it drastically reduces cabling infrastructure costs and simplifies long-distance surveillance routing. Supporting extreme high-resolution video streams up to 8MP / 4K UHD, it features built-in transient surge suppression, ESD protection, and superior common-mode noise immunity to prevent ground loops and electromagnetic interference in commercial and residential security systems.

Specifications

• Product Type: Single-Channel Passive HD Video Balun Transceiver (Sold as Transmitter + Receiver Pair)
• Supported Video Formats: HD-TVI, HD-CVI, AHD, and Traditional Analog CVBS (Automatic signal format passthrough)
• Supported Camera Resolutions: 720p, 960p, 1080p (2MP), 3MP, 4MP, 5MP, and 8MP (4K UHD)
• Power Requirement: Passive (No external DC power required)
• Transmission Media: Standard Unshielded Twisted Pair (UTP) Cat5, Cat5e, or Cat6 Network Cable (Pure Copper recommended)
• Impedance Matching:
  • Coaxial BNC Side: 75 Ω Unbalanced
  • UTP Cable Side: 100 Ω Balanced (Differential)
• Connector Interface:
  • Video In/Out: Gold-Plated Male BNC Connector with Flexible Coaxial Pigtail / Rigid BNC Body
  • UTP Termination: Tool-Less Push-Pin Terminal Block (or Screw Terminal / Press-Fit Spring Clips)
• Transmission Distance Capabilities (over pure copper Cat5e/Cat6):
  • AHD Mode: 720p/1080p up to 300m; 4MP/5MP up to 200m; 8MP (4K) up to 150m – 180m
  • HD-CVI Mode: 720p/1080p up to 400m; 4MP/5MP up to 250m; 8MP (4K) up to 180m – 200m
  • HD-TVI Mode: 720p/1080p up to 250m; 4MP/5MP up to 180m; 8MP (4K) up to 150m – 180m
  • CVBS Analog Mode: Standard analog composite video up to 400m – 500m
• Common Mode Rejection Ratio (CMRR): ≥ 60 dB (Ensures high noise immunity against power line hum)
• Frequency Bandwidth: 0 Hz to 75 MHz (Broadband high-frequency video passthrough)
• Built-in Surge & Transient Protection:
  • Surge Immunity: 2 kV Per: IEC61000-4-5
  • Electrostatic Discharge (ESD): 1a Contact Discharge (Level 3), 1b Air Discharge (Level 3) Per: IEC61000-4-2
• Housing Material: High-Durability Flame-Retardant ABS Plastic (Black)
• Operating Ambient Temperature: -10°C to +70°C
• Storage Temperature: -30°C to +70°C
• Operating Relative Humidity: 0% to 95% RH (Non-condensing)
• Dimensions: Approx. 39 mm × 17 mm × 19 mm (Excluding BNC cable tail)
• Net Weight: Approx. 40 g to 50 g (per pair)

Features

• Full 8MP (4K) UHD Support: High-frequency signal processing preserves crisp edge details, color fidelity, and low latency across ultra-high-resolution 8MP cameras.
• Universal 4-in-1 Compatibility: Seamlessly works with all major analog HD standards (Dahua CVI, Hikvision TVI, AHD, and standard CVBS DVRs) without mode configuration.
• Tool-Less Push-Pin Terminals: Built-in spring-loaded clamp terminals allow rapid UTP wire stripping and insertion without needing screwdrivers or crimp tools.
• Interlocking Side Grooves: Splicing dovetail slots on the outer plastic casing allow multiple balun units to lock together into a clean, organized array at the DVR back panel.
• Superior Anti-Interference & 60dB CMRR: Balanced differential transmission cancels out external electromagnetic interference (EMI) and radio frequency interference (RFI) from nearby AC mains cables and fluorescent lights.
• Cost-Effective Multi-Camera Cabling: A single 4-pair Cat5e/Cat6 cable can carry video signals from up to 4 independent CCTV cameras simultaneously over long distances.

Common Applications

• High-Resolution CCTV Security Installations: Upgrading analog coaxial networks to 4K / 8MP HD-TVI and HD-CVI systems using structured UTP cabling.
• Commercial Building & Office Surveillance: Long-distance camera video routing through existing Ethernet cable risers and drop ceilings.
• Industrial Factory Monitoring: Deploying surveillance cameras in electrically noisy factory floors where motors and power feeds cause video hum bars on standard coaxial cable.
• Elevator & Lift Shaft Monitoring: Transmitting stable video feeds through flexible traveling cables with high immunity against ground-loop distortions.
• Perimeter Security & Parking Lots: Cost-effective point-to-point camera connections back to centralized security control rooms.

Usage Tips

• Cable Quality Matters (Use Pure Bare Copper): Always use 100% Solid Bare Copper (OFC) Cat5e or Cat6 cable. Avoid Copper-Clad Aluminum (CCA) or Copper-Clad Steel (CCS) wire, as higher loop resistance significantly reduces 8MP signal quality, causing color loss or video dropouts at long distances.
• Strict Polarity Alignment: Ensure matching polarity at both the camera transmitter and DVR receiver ends (Connect Wire Positive (+) to (+) and Negative (-) to (-) on both sides of the twisted pair). Reversing polarity will result in inverted, rolling, or black-and-white video.
• Pair Selection (Use a Single Twisted Pair): Transmit each video signal over a single matched twisted pair (e.g., Solid Blue + Blue/White). Do not mix wires from different pairs (e.g., Blue and Orange), as this breaks the differential noise cancellation.
• Multi-Camera Channel Separation: When routing up to 4 camera video channels through a single 8-core Cat5e/6 cable, assign each camera to its own dedicated color pair (Pair 1: Blue/White-Blue, Pair 2: Orange/White-Orange, Pair 3: Green/White-Green, Pair 4: Brown/White-Brown).
• Prevent Ground Loops: If faint scrolling horizontal lines ("hum bars") appear on the monitor, ensure the camera mounts are isolated from metal building structures, or add an inline video ground loop isolator between the balun and the DVR.
