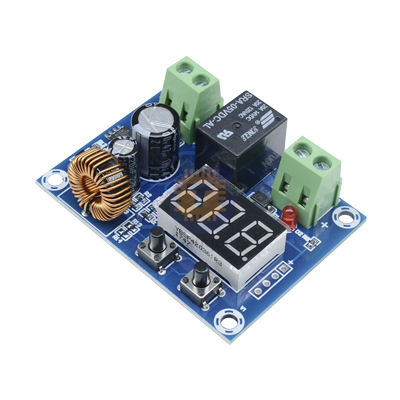

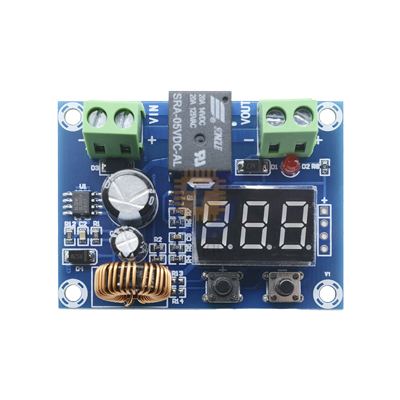

This XH-M609 module is a Power Supply/Battery Charger Control Module with battery over discharge protection. It has stable performance, high integration and durability. The automatic power-off and discharge protection functions increase the battery life. This is suitable for discharging protection of all kinds of batteries.

Specification:

• Power Supply: 12 - 36 VDC
• Output Voltage: Equal to power supply voltage
• Current: 10A Max.
• Control Precision: 0.1V
• Power Consumption: <1>
• Dimensions: 57 x 42 x 19 mm

Operational Instructions:

• + key: press once to display the protection value, long press to set the protection value
• – key: press once to display the hysteresis value, long press to set the hysteresis value
• Double-click the + number button, then press + or - button, set the stop voltage value
• Double click on the – number button, then press + or - button, set the hysteresis voltage value
• Long press the + number button, then press + or - button, to calibrate the input voltage display value
• Long press the - number button, then press + or - button, set the latency start value T. At the time of when the output voltage reaches the start value, after the delay T, there is a voltage output, the delay time is 0 ~ 10 minutes, the display category is: 000 or 001 or 005 or 010
• Click the + number button to view the stop voltage value
• Click the - number button to view the hysteresis voltage value

Video Tutorial: YouTube
