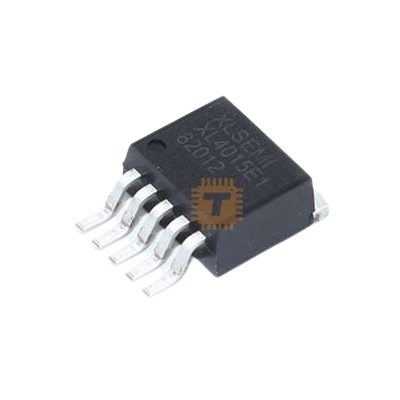

The XL4015 is a 180 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation fixed-frequency oscillator.

The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An over current protection function is built inside. When short protection function happens, the operation frequency will be reduced from 180KHz to 48KHz. An internal compensation block is built in to minimize external component count.

Features:

• Wide 8V to 36V Input Voltage Range
• Output Adjustable from 1.25V to 32V
• Maximum Duty Cycle 100%
• Minimum Drop Out 0.3V
• Fixed 180KHz Switching Frequency
• 5A Constant Output Current Capability
• Internal Optimize Power MOSFET
• High efficiency up to 96%
• Excellent line and load regulation
• Built in thermal shutdown function
• Built in current limit function
• Built in output short protection function
• Available in TO263-5L package

Datasheet: https://datasheet.lcsc.com/lcsc/1811081616_XLSEMI-XL4015E1--_C51661.pdf
