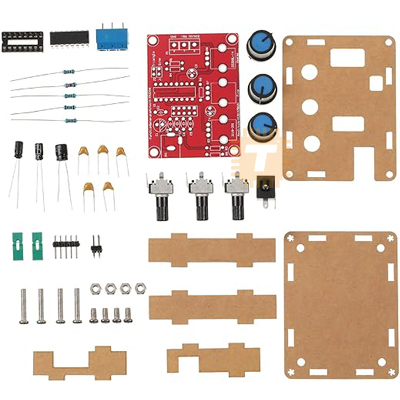

The XR2206 Signal Generator Module is a versatile and cost-effective DIY kit designed for electronics enthusiasts, hobbyists, and students. It enables users to generate high-precision sine, triangle, and square waveforms with adjustable frequency and amplitude, making it ideal for testing and experimentation.

Features :

• Frequency Adjustment: Coarse and fine tuning knobs for precise frequency control
• Amplitude Control: Adjustable amplitude for sine and triangle waves
• Build: All through-hole components for easy assembly

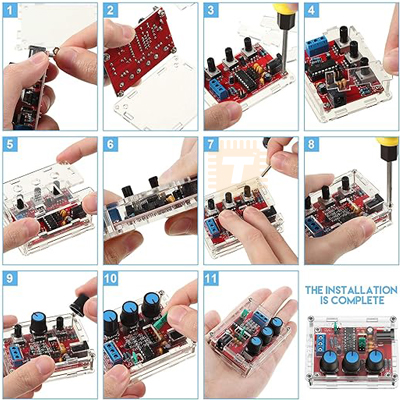

• Enclosure: Transparent acrylic case included for protection and visibility
• Power Supply: Compatible with 9–12V DC input or a 9V battery

Specifications :

• Operating Voltage: 9–12V DC input (can use a 9V battery)
• Waveforms Generated:
  • Sine Wave
    • Amplitude: 0–3V peak-to-peak at 9V DC input
    • Distortion: Less than 1% at 1 kHz
    • Flatness: +0.05 dB from 1 Hz to 100 kHz
  • Square Wave
    • Amplitude: 8V peak-to-peak (no load) at 9V DC input
    • Rise Time: Less than 50 ns at 1 kHz
    • Fall Time: Less than 30 ns at 1 kHz
    • Symmetry: Less than 5% at 1 kHz
  • Triangle Wave
    • Amplitude: 0–3V peak-to-peak at 9V DC input
    • Linearity: Less than 1% up to 100 kHz
• Frequency Range: 1 Hz to 1 MHz
• Impedance: 600Ω ±10%

Applications :

• Educational Use: Ideal for learning and teaching electronics concepts.
• Signal Testing: Useful for testing audio equipment, amplifiers, and other electronic circuits.
• Prototyping: Assists in prototyping and debugging electronic designs.
