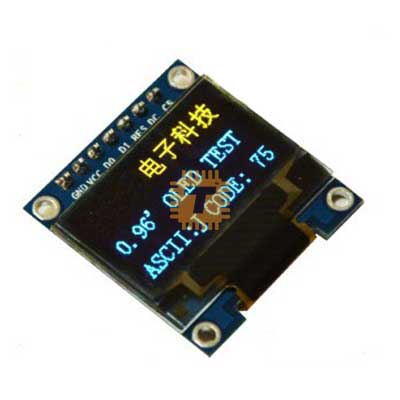

0.96 inch 128X64 OLED Display Module Blue Yellow SPI (DM0007) Products
Name 0.96 inch 128X64 OLED Display Module Blue Yellow SPI
Code DM0007
Price Rs.650.00
In Stock Yes
PackageDISPLAY
Product Details

Specifications:

  • Size: 0.96
  • Resolusion: 128X64
  • Color: Blue and Yellow
  • Viewing angle: greater than 160 degrees
  • Supported platforms: for arduino, 51 series, MSP430 series, STIM32/2, and SCR chips
  • Ultra-low power consumption: normal display: 0.06W (far below the TFT display)
  • Support wide voltage: 3.3V–5V DC
  • Working temperature: -30 to 80 degrees
  • Dimensions: 27x27x4.1mm
  • Driver IC: SSD1306
  • Support for multiple operating modes: 3-wire SPI, 4-wire SPI, and IIC
  • With a chip-select CS signal, you can achieve multiple SPI or IIC devices on the same bus.

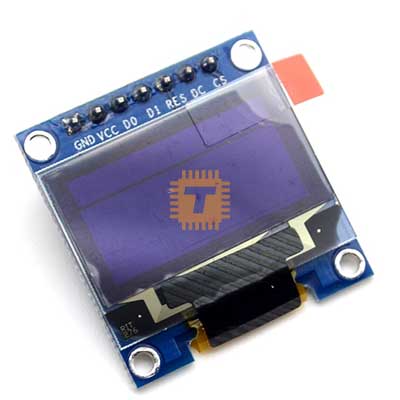

Pin Description:

  • GND: Power ground
  • VCC: 3.3V or 5V power supply
  • D0: CLK Clock
  • D1: MOSI data
  • RST: Reset
  • DC: data / command
  • CS: Chip select signal

Tutotial: https://www.youtube.com/watch?v=Fd5uJhUzrek
