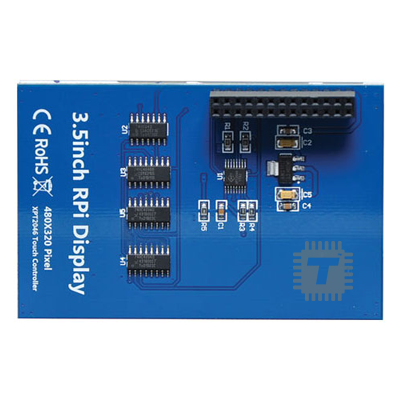

The MPI3501 3.5-inch LCD Touch Screen is a compact and high-resolution display designed for Raspberry Pi boards. With a 480x320 pixel resolution, it offers resistive touch control, making it a versatile choice for interactive projects.

Features :

• Directly pluggable into Raspberry Pi and supports touch control
• Display Quality: TFT LCD with 65536 colors, ensuring vibrant visuals.
• Touch Control: Resistive touch screen with an XPT2046 controller.
• Interface: SPI connection for efficient data transfer.
• Durability: High-quality immersion gold surface plating for longevity.

Specifications :

• Resolution: 480×320 pixels
• Touch Screen Type: 4-wire resistive touch
• Interface: SPI (Fmax: 32MHz)
• Driver IC: ILI9486
• Touch Screen Controller: XPT2046
• Backlight: LED
• Power Dissipation: 0.13A * 5V
• Operating Temperature: -20°C to 60°C
• Active Area: 48.96 × 73.44 mm
• Product Dimensions: 85.42 × 55.60 mm
• Compatibility: Works with Raspberry Pi models A, B, A+, B+, 2B, 3B, 3B+, 4B
• Supported Operating Systems: Raspbian, Ubuntu, Kali Linux

Installation & Usage :

To use the display, you need to install the appropriate drivers. The process involves downloading the Raspbian image, burning it to an SD card, and running a few terminal commands to set up the screen.
