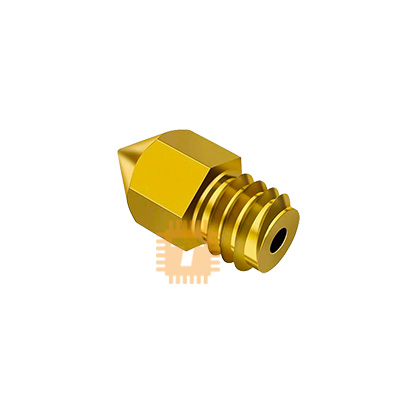

The MK8 0.5mm Brass 3D Printer Nozzle is a high-flow extrusion nozzle designed for MK8-style hotends across a broad range of desktop FDM 3D printers. Machined from high-grade, thermally conductive brass with a precision 0.5mm orifice, this nozzle offers a practical balance between faster print speeds, thicker layer lines, and solid structural part strength for standard 1.75mm filaments, while still maintaining clean surface perimeters.

Specification

• Nozzle Standard: MK8 Profile
• Orifice Output Diameter: 0.5mm
• Filament Diameter Compatibility: 1.75mm
• Material Composition: High-Purity International Standard Brass (H59 / H62)
• Thermal Conductivity: Approx. 105 W/(m·K)
• Maximum Printing Temperature: Up to 260°C - 300°C
• Screw Thread Standard: Metric M6 (M6 x 1.0mm pitch)
• Total Length: 13mm
• Hex Flat Diameter: 6mm
• Inner Bore Roughness: Ra less than 0.4 µm
• Printer Compatibility: Compatible with standard MK8 hotend heater blocks, including Creality Ender-3 series, Ender-5 series, CR-10 series, Anet A8/A6, MakerBot Replicator, Tevo Tarantula, Anycubic Mega series, and other M6 MK8-threaded extruder setups.

Features

• Enhanced Flow Rate and Speed: The 0.5mm orifice enables thicker extrusion line widths and layer heights (up to 0.35mm - 0.40mm), cutting down total print time on larger models compared to a standard 0.4mm nozzle.
• Superior Layer Adhesion: Extruding wider plastic beads increases contact surface area between layers, producing stronger, more durable structural parts.
• Rapid Heat Transfer: High-purity brass provides efficient, uniform heat distribution throughout the melt chamber, maintaining consistent plastic flow under higher volumetric speeds.
• Precision CNC Mirror-Bore: Manufactured with a smooth internal taper and polished bore (Ra less than 0.4 µm) to minimize wall drag, lower extrusion back-pressure, and reduce the chance of clogs.
• Flat Contact Mating Face: The precision-ground rear face ensures a flush, tight mechanical seal against the heatbreak throat or internal PTFE liner when hot-tightened, preventing filament leakage along the heater block threads.

Common Applications

• Functional Mechanical Prototypes: Printing robust brackets, motor mounts, tool holders, and machinery housings requiring high layer bonding strength and impact resistance.
• Medium-to-Large Structural Enclosures: Fast fabrication of electrical project boxes, chassis frames, and functional jigs with reduced overall print durations.
• Draft-Quality Concept Models: Rapid prototyping of visual designs, architectural blocks, and mold masters where build speed takes priority over ultra-fine micro-detail.

Professional Installation and Maintenance Tips

• Always Perform Final Hot-Tightening: Thread the nozzle into the heater block finger-tight while cold, heat the hotend to 240°C - 250°C, hold the heater block securely in place using an adjustable wrench, and torque the nozzle down with a 6mm socket (approx. 1.5 to 2.0 N·m) to prevent molten plastic leaks.
• Update Slicer Nozzle Profile: Remember to change the nozzle diameter setting to 0.5mm in your slicing software (Cura, PrusaSlicer, OrcaSlicer) and adjust line widths accordingly (typically 0.50mm to 0.60mm) to ensure accurate volumetric flow calculations.
• Ensure Square PTFE Tube Contact: For Bowden hotends, verify that the PTFE tube is cut clean and flat at 90 degrees and pushed completely against the top of the nozzle before securing the pneumatic coupler clip to eliminate gap-related jams.
• Avoid Abrasive Filaments: Soft brass will rapidly wear out when printing with abrasive materials such as carbon fiber, metal-fill, wood-fill, or glow-in-the-dark filaments. Use hardened steel or bi-metal nozzles when working with abrasive composites.
