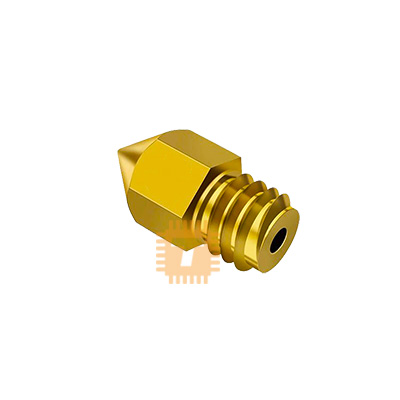

The MK8 1.0mm Brass 3D Printer Nozzle is an ultra-wide-bore extrusion nozzle designed for MK8-style hotends across a wide variety of desktop FDM 3D printers. Machined from high-purity, thermally conductive brass with a large 1.0mm orifice, this nozzle is engineered to output maximum volumetric flow, drastically cutting build times on oversized parts while producing thick, virtually indestructible layer bonds for standard 1.75mm filaments.

Specification

• Nozzle Standard: MK8 Profile
• Orifice Output Diameter: 1.0mm
• Filament Diameter Compatibility: 1.75mm
• Material Composition: High-Purity International Standard Brass (H59 / H62)
• Thermal Conductivity: Approx. 105 W/(m·K)
• Maximum Printing Temperature: Up to 260°C - 300°C
• Screw Thread Standard: Metric M6 (M6 x 1.0mm pitch)
• Total Length: 13mm
• Hex Flat Diameter: 6mm
• Inner Bore Roughness: Ra less than 0.4 µm
• Printer Compatibility: Compatible with standard MK8 hotends and heater blocks, including Creality Ender-3 series, Ender-5 series, CR-10 series, Anet A8/A6, MakerBot Replicator, Tevo Tarantula, Anycubic Mega series, and other M6 MK8-threaded extruder assemblies.

Features

• Maximum Print Speed and Throughput: The large 1.0mm aperture allows for wide extrusion lines (1.0mm to 1.2mm) and tall layer heights (up to 0.7mm - 0.8mm), cutting overall print times by up to 70% to 80% on large-format models compared to standard 0.4mm nozzles.
• Exceptional Part Strength: Large bead widths dramatically increase layer contact surface area and thermal retention, yielding rugged structural parts with superior impact resistance and layer bonding.
• High Thermal Transfer Brass Core: High-purity brass provides rapid heat distribution into the high-volume filament flow to minimize cold under-extrusion.
• Smooth CNC Mirror-Bore: Polished interior walls (Ra less than 0.4 µm) lower internal wall friction and back-pressure, facilitating consistent plastic delivery under high volumetric flow demands.
• Flat Contact Sealing Face: Precision-machined flat rear shoulder provides a gap-free mechanical seal against the heatbreak throat or internal PTFE liner when properly hot-tightened, preventing leakage along the heater block threads.

Common Applications

• Large Industrial and Functional Parts: Rapidly fabricating load-bearing brackets, workshop fixtures, heavy-duty enclosures, and chassis frames where raw mechanical strength is the primary goal.
• Cosplay Props and Full-Scale Prototypes: Fast production of large concept models, cosplay armor, helmets, and architectural mockups in minimal time.
• Structural Vase Mode Printing: Producing thick, sturdy, and completely watertight trash bins, storage buckets, lampshades, and planters in single-wall spiral mode.

Professional Installation and Maintenance Tips

• Always Perform Final Hot-Tightening: Thread the nozzle into the heater block finger-tight while cold, heat the hotend to 240°C - 250°C, hold the heater block securely in place using an adjustable wrench or pliers, and torque the nozzle firmly with a 6mm socket (approx. 1.5 to 2.0 N·m) to prevent molten filament leaks.
• Increase Hotend Temperature by 15°C - 20°C: Pushing a 1.0mm stream of plastic requires substantially more thermal energy. Increasing print temperatures prevents under-extrusion and reduces extruder motor skipping.
• Tune Print Speed to Hotend Flow Capacity: Standard MK8 hotends have a max volumetric flow rate of around 12 to 15 mm³/s. Keep print speeds moderate (typically 20mm/s to 40mm/s) to avoid exceeding the melting capacity of your heater block.
• Avoid Abrasive and Composite Filaments: Soft brass will rapidly degrade when used with abrasive materials like carbon fiber, glass fiber, wood, or glow-in-the-dark filaments. Use hardened steel or bi-metal nozzles for abrasive composites.
