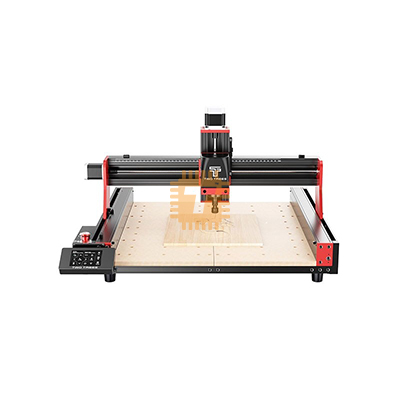

The TTC450 Pro CNC Machine is a high-precision 3-axis desktop CNC router designed for engraving, milling, drilling, and cutting applications. Built with a rigid aluminum frame and powered by GRBL control firmware, this machine delivers accurate and stable performance across a wide range of materials including wood, plastic, acrylic, PCB boards, and soft metals such as aluminum and copper.

With a large working area, touchscreen offline control, and multi-software compatibility, the TTC450 Pro is ideal for hobbyists, engineers, PCB designers, and small workshops.

Features

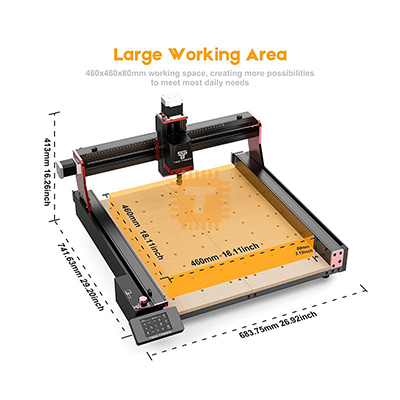

• Large 460 × 460 × 80 mm working area
• High-precision 3-axis CNC control
• Rigid aluminum and steel frame construction
• Built-in 3.5″ IPS touchscreen for offline control
• GRBL open-source control system
• Supports CNC milling and optional laser module
• Compatible with wood, PCB, acrylic, plastic, carbon fiber and soft metals
• ER11 collet support (0.5 – 7 mm tool bits)
• Adjustable spindle speed (approx. 8,000 – 30,000 RPM)
• USB, WiFi (2.4GHz) and TF card connectivity
• Wide software compatibility (Fusion 360, VCarve, Easel, etc.)
• Stable and smooth motion system

Specifications

• Model: TTC450 Pro
• Working Area: 460 × 460 × 80 mm
• Machine Dimensions: Approx. 742 × 689 × 413 mm
• Control System: GRBL
• Display: 3.5″ IPS Touchscreen (480 × 320)
• Spindle Motor: 775 Brushed Motor (Standard)
• Optional Upgrade: 500W Spindle
• Spindle Speed: 8,000 – 30,000 RPM
• Collet Type: ER11 (0.5 – 7 mm)
• Positioning Accuracy: ±0.05 mm
• Max Engraving Speed: 800 mm/min
• Power Input: 100–240V AC
• Output Adapter: 24V DC / 3A
• Supported File Formats: NC, G-code, DXF, BMP, PNG, JPG
• Supported OS: Windows, macOS, Linux

Applications

• Wood engraving and carving
• Acrylic and plastic cutting
• PCB milling and drilling
• Aluminum and copper machining (soft metals)
• DIY projects and prototyping
• Sign making and decorative carving
• Small workshop production work
