Specifications:

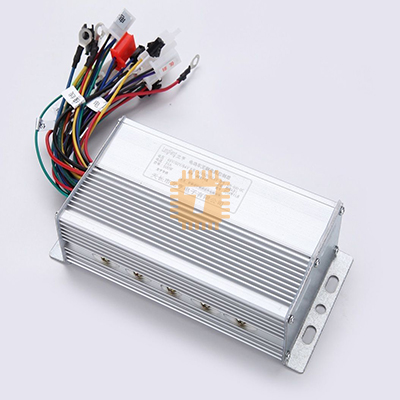

• Motor brushless controller for Electric bicycles & scooters
• Rated Voltage: 48 V
• Rated Current: 31A
• Rated Power: 500 W
• Matching motor: brushless motor
• Under Voltage Protection:41V
• Throttle Voltage: 1V to 4.2V
• Phase Angle: 60/120 degrees
• Brake Level: Low /High
• Heat Dissipation: Natural cooling
• Ambient Temperature: -20 degrees to 50 degrees
• Protection Grade: IP55

Operation Notice:

• Connect the power, motor, throttle, and power lock, but not connect the Hall lines. Connect the adaptive learning wire
• Switch on the power lock, and roll the throttle. If the motor works well, connect the Hall lines
• If the motor rolls reversely, disconnect the adaptive learning wire and check the motor again, before connecting the Hall wire

Wires Interface Definition:

• Battery: Thick Black (Power Negative) /Thick Red (Power Positive)
• Power Lock: Thin Red (power lock)
• Motor: Thick Green (Phase lines) /Thick Yellow (Phase lines) /Thick Blue (Phase lines)
• Motor Hall lines: Red (+5V) /Black (Negative) /thin Yellow (Hall lines) /thin blue (Hall lines) /thin green (Hall)
• Adaptive Learning: Thin white /Thin white, connect
• Brake(High): Thin yellow (Brake signal)
• Brake(Low): Thin Purple (Brake signal) /Thin Black(Brake Negative)
• Throttle: Thin Red(Throttle Positive) / Thin Black(Throttle negative)/ Thin Green(Throttle signal)
• Instrument: Thin Green (Instrument signal)
• Cruise: Thin Blue (Cruise Signal) /Thin Black(Cruise negative), connect
• Speed: Thin Brown (High-Speed signal) /Thin Black(Speed negative)/Thin Blue(Low-Speed Signal)
• Antitheft power: Thin Black (Power Negative) /Thin Red (Power Positive)
• Antitheft Signal: Thin Orange (Power lock) /Thin Blue (Alarms output) /Thin Green(Signal)
• Reverse:Thin Brown (Reverse signal) /Thin Black (Reverse Negative)
