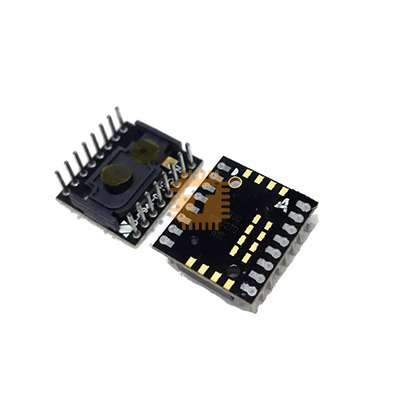

The ADNS-9800 Laser gaming sensor comprises of sensor and VCSEL in a single chip-on-board (COB) package. ADNS-9800 provides enhanced features like programmable frame rate, programmable resolution, configurable sleep and wake up time to suit various PC gamers’ preferences.

Features of ADNS-9800:

• Small form factor chip-on-board package
• Dual power supply selections, 3 V or 5 V
• VDDIO range: 1.65 – 3.3 V
• 16-bits motion data registers
• High speed motion detection up to 150 ips and
• acceleration up to 30 g
• Advanced technology 832-865 nm wavelength VCSEL
• Single mode lasing
• No laser power calibration needed
• Compliance to IEC/EN 60825-1 Eye Safety
  • Class 1 laser power output level
  • On-chip laser fault detect circuitry
• Self-adjusting frame rate for optimum performance
• Motion detect pin output
• Internal oscillator – no external clock input needed
• Enhanced Programmability
  • Frame rate up to 12,000 fps
  • 1 to 5 mm lift detection
  • Resolution up to 8200 cpi with ~50 cpi step
  • X and Y axes independent resolution setting
  • Register enabled Rest Modes
  • Sleep and wake up times

Datasheet of ADNS-9800

ADNS-6190-002 Lens:

The ADNS-6190-002 LaserStream gaming round lens is designed for use with Avago Technologies ADNS-9500 and ADNS-9800 LaserStream™ gaming sensors. Together with the integrated VCSEL in the same package, the ADNS-6190-002 round lens provides directed illumination and optical imaging necessary for proper operation of the sensor. The ADNS-6190-002 lens is a precision molded optical component and should be handled with care to avoid scratching and contamination of the optical surfaces.

Datasheet of ADNS-6190-002 Lens
