The Diymore Max II EPM240 CPLD Development Board is a versatile and feature-rich learning board designed for educational purposes and hands-on experimentation with complex programmable logic devices (CPLDs).

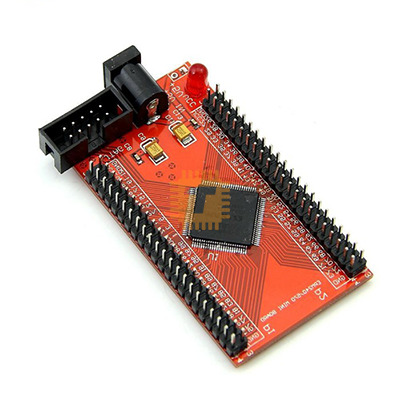

This product is the minimum system board for the MAX II series CPLD chip EPM240T100C5N from the company. It is ideal for both product verification and development, compatible with Byte-Blaster and USB-Blaster downloader.

User-friendly and straightforward in installation, the module comes equipped with JTAG, power interfaces, and all necessary connected pins. It seamlessly operates upon connecting to a DC 5V power supply.

The CPLD chip included in this system board is well-suited for cost-effective CPLD/FPGA introductions. Leveraging all IO Ports on the board, users have the flexibility to extend external circuits, incorporating elements like LED lamps, digital tubes, LCD screens, and serial communication devices. Facilitate the users to develop their own products to maximize the learning development cost savings for the user.

Specifications:

• Chip board EPM240T100C5
• Board JTAG interface,
• Active board 50MHZ crystal
• With a programmable LED
• With a 5V chip, 3.3V AMS1117-3.3 switch
• 5V power supply with switch
• All the leads all the IO
• Colour: Red
