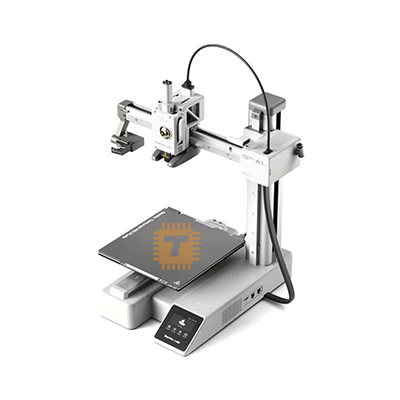

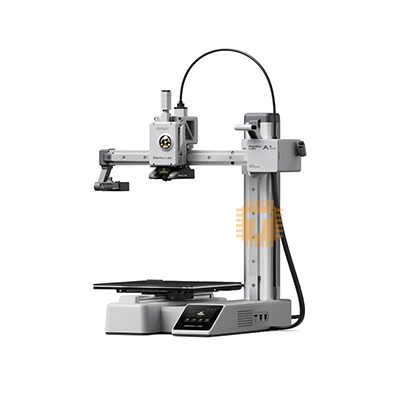

The Bambu Lab A1 Mini 3D Printer (Global Version) is a high-speed, fully automated desktop FDM 3D printer engineered for exceptional precision, plug-and-play ease of use, and multi-color printing capabilities. Featuring an active flow rate compensation algorithm, full-auto bed leveling, active motor noise canceling, and seamless AMS Lite integration, the A1 Mini delivers high-speed printing performance up to 500mm/s right out of the box with zero manual calibration required.

Specification

• Brand / Manufacturer: Bambu Lab
• Product Model: A1 Mini (Global Version)
• Printing Technology: Fused Deposition Modeling (FDM / FFF)
• Build Volume: 180 x 180 x 180 mm³
• Chassis Structure: Cantilever Design with All-Metal Linear Rails & Steel Motion Components
• Maximum Toolhead Speed: Up to 500 mm/s
• Maximum Acceleration: Up to 10,000 mm/s²
• Maximum Hotend Temperature: Up to 300°C
• Maximum Heated Bed Temperature: Up to 80°C
• Nozzle Type: Quick-Swap All-Metal Hotend (0.4mm Stainless Steel included; 0.2mm, 0.6mm, 0.8mm optional)
• Filament Compatibility: 1.75mm diameter; PLA, PETG, TPU, PVA (Optimized for everyday and flexible filaments)
• Multi-Color / Multi-Material Support: AMS Lite Compatible (Supports up to 4 colors/materials with AMS Lite unit)
• Auto-Bed Leveling & Z-Offset: Fully Automated (Dual-sensor mesh bed leveling with zero manual knobs)
• Sensors & Monitoring: Active Flow Rate Compensation (Eddy-current sensor), Filament Runout Sensor, Filament Tangle Sensor, Filament Odometry, Power Loss Recovery
• User Interface: 2.4-inch 320x240 Color IPS Touchscreen
• Camera: Built-in 1080p Low-Frame Rate Camera (Supports live monitoring and timelapse recording)
• Connectivity: Wi-Fi, Bambu Bus Cable, MicroSD Card
• Slicing Software: Bambu Studio, Bambu Handy (Mobile App), OrcaSlicer
• Physical Dimensions & Net Weight: 347 x 315 x 365 mm³ | Approx. 5.5 kg

Features

• Full-Auto Calibration & Out-of-the-Box Setup: Completely eliminates manual leveling, Z-height adjustments, and vibration tuning. The A1 Mini automatically runs bed mesh leveling, vibration resonance calibration, and nozzle pressure compensation before each print.
• Active Flow Rate Compensation: Utilizes a high-frequency eddy-current sensor in the toolhead to measure nozzle extrusion backpressure in real time, actively adjusting flow dynamics for sharp corners and smooth perimeters without over-extrusion bulges.
• Multi-Color & Multi-Material Printing (AMS Lite Ready): Connects effortlessly with the optional Bambu Lab AMS Lite to enable seamless 4-spool automatic filament switching, multi-color artistic printing, and soluble/breakaway support material management.
• Active Motor Noise Canceling: Employs specialized motor drive algorithms to neutralize stepper motor harmonics and frequency noise, maintaining whisper-quiet operation under 48 dB even during high-speed moves.
• Quick-Swap Modular Nozzle System: Features a magnetic clip-on hotend mechanism that allows tool-free nozzle swaps in seconds without needing to unscrew delicate heater cartridges or thermistors.
• All-Metal Linear Rail Motion: Precision all-metal linear guide rails on X and Z axes combined with a rigid Y-axis guide ensure long-term positional accuracy, minimal play, and repeatable consistency.
• Bambu Cloud & Local Network Integration: Effortlessly start, monitor, and manage prints from your smartphone via the Bambu Handy app or desktop computer using Bambu Studio and MakerWorld cloud integration.

Common Applications

• Multi-Color Figurines & Art Models: Producing vibrant, multi-tone tabletop miniatures, character statues, and home decor items with seamless color transitions.
• Rapid Prototyping & Concept Validation: Fast turnarounds on mechanical parts, brackets, enclosures, and functional assemblies using PLA and PETG.
• STEM Education & Maker Classrooms: An ideal, user-friendly 3D printer for schools, libraries, and beginner hobbyists due to its automated safety features and minimal maintenance requirements.
• Custom Wearables & Flexible Accessories: Effortlessly printing flexible TPU phone cases, gaskets, drone bumpers, and watch bands using the direct-drive extruder.

Professional Installation and Maintenance Tips

• Keep Build Plate Clean with Warm Soapy Water: To maintain optimal first-layer adhesion on the textured PEI plate, wash regularly with warm water and dish soap to remove accumulated skin oils; avoid touching the print surface directly with fingers.
• Perform Periodic Linear Rail Lubrication: Apply a light coat of the included specialized lubricant grease to the steel linear rails every few hundred printing hours to ensure smooth carriage movement and prevent premature wear.
• Allow Chamber Airflow for PLA Printing: The A1 Mini has an open-frame design; ensure the printer is placed away from heavy air drafts or direct air conditioning vents to prevent uneven part cooling and corner warping.
• Verify Nozzle Clip Seating: When swapping hotends, always ensure the front silicone latch and retainer clip are fully engaged and locked in place before heating to prevent thermal misalignment.
