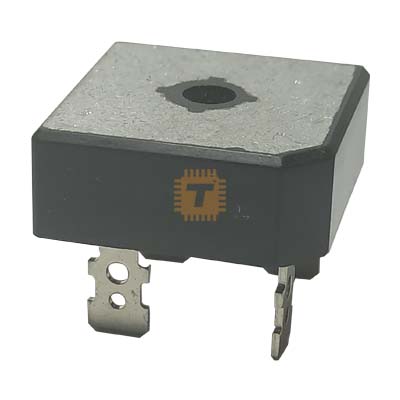

The C3510 Bridge Rectifier offers reliable AC to DC conversion with a rugged KBPC-style case and lug-type terminals. Ideal for PCB-based mounting in power supplies and control modules.

Specifications

• Average Rectified Current (Io): 35 A
• Peak Reverse Voltage (VRRM): 1000 V
• RMS Voltage: 700 V
• Forward Voltage Drop (VF): 1.1 V @ 17.5 A
• Peak Surge Current (IFSM): 300–400 A
• Reverse Leakage Current (IR): ≤ 10 µA @ 1000 V
• Operating Temperature Range: -55°C to +150°C
• Mounting Type: Through-Hole (THT)
• Terminal Type: Lug (flat tabs)
• Case Type: KBPC metal case
• Isolation Voltage: >2500 V (Case to Lead)

Features

• Molded heat sink: Efficient thermal dissipation
• Electrically isolated metal case: Enhances safety
• Flat lugs: Ideal for direct PCB or hardware mount
• RoHS and Pb-free: Environmentally compliant
• UL certified: Meets industrial safety standards
• Durable housing: Supports vertical or horizontal placement

Supplier link: https://www.mouser.com/datasheet/2/308/1/GBPC3510_D-2314404.pdf
