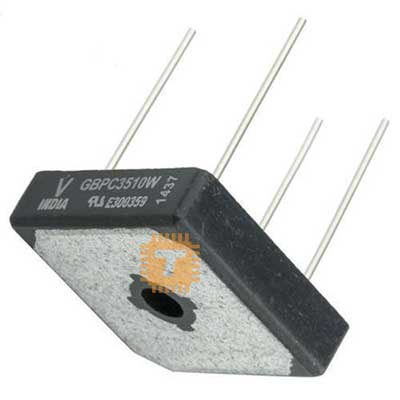

The C3510W Bridge Rectifier is tailored for flexible wiring setups with pin-type terminals. Suited for chassis installations and wire-based integration in high-power AC-to-DC circuits.

Specifications

• Average Rectified Current (Io): 35 A
• Peak Reverse Voltage (VRRM): 1000 V
• RMS Voltage: 700 V
• Forward Voltage Drop (VF): 1.1 V @ 17.5 A
• Peak Surge Current (IFSM): 300–400 A
• Reverse Leakage Current (IR): ≤ 10 µA @ 1000 V
• Operating Temperature Range: -55°C to +150°C
• Mounting Type: Through-Hole (THT) or panel wiring
• Terminal Type: Pin (wire leads)
• Case Type: KBPC metal case
• Isolation Voltage: >2500 V (Case to Lead)

Features

• Integrated heat sink: Manages high thermal loads
• Pin terminals: Simplifies wire-based connections
• Electrically isolated housing: Improves safety margin
• Compliance: RoHS, Pb-free, MIL−STD−202
• UL listed: Verified for industrial-grade usage
• Mounting versatility: Chassis or cable installations

Supplier link: https://www.mouser.com/datasheet/2/308/1/GBPC3510_D-2314404.pdf
