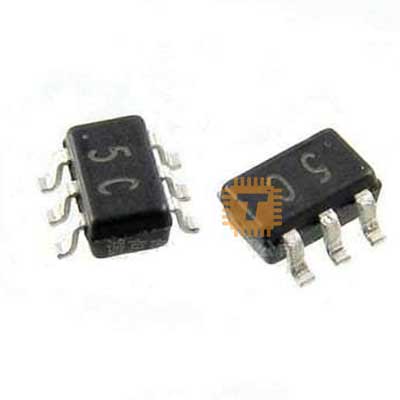

This 5−line voltage transient suppressor array is designed for application requiring transient voltage protection capability. It is intended for use in over−transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single SC−88 package.

Features

• Protects up to 5−Line in a Single SC−88 Package
• Peak Power Dissipation − 100 W (8 x 20 s Waveform)
• ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model.
• Compliance with IEC 61000−4−2 (ESD) 15 kV (Air), 8 kV (Contact)
• Flammability Rating of UL 94 V−0
• Pb−Free Package is Available

Applications

• Hand−Held Portable Applications
• Networking and Telecom
• Automotive Electronics
• Serial and Parallel Ports
• Notebooks, Desktops, Servers
