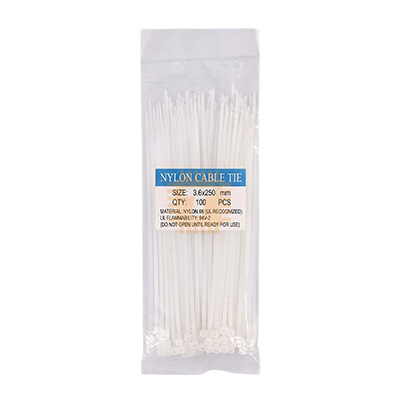

The Cable Tie 3.6x250mm White (100pcs Pack) is an intermediate-duty nylon zip tie bundle engineered for medium-to-large wire harnessing, industrial control cabinet routing, pneumatic hose bundling, and general workshop fastening. Molded from high-tensile virgin Polyamide 66 (Nylon 6/6), each tie features an integrated four-tooth ratchet locking head and deeply molded transverse serrations that deliver strong pull-out resistance and positive engagement. With a robust 3.6 mm width and an extended 250 mm length, this versatile pack accommodates heavy-gauge power conduits, multi-wire trunks, and structural attachments to machinery frames with a clean, semi-translucent white finish.

Specifications

• Product Type: Self-Locking One-Piece Nylon Cable Ties (Zip Ties)
• Pack Quantity: 100 Pieces per Pack
• Nominal Dimensions: 3.6 mm Width × 250 mm Length (Approx. 0.14 × 10.0 Inches)
• Actual Strap Width: Approx. 3.5 mm to 3.6 mm
• Strap Thickness: Approx. 1.1 mm to 1.3 mm
• Maximum Bundle Diameter: Approx. 65 mm to 68 mm (~2.5 to 2.7 Inches)
• Minimum Bundle Diameter: Approx. 3.0 mm to 4.0 mm
• Material: Virgin Polyamide 66 (PA66 / Nylon 6/6)
• Loop Tensile Strength: Approx. 18 kg (40 lbs / ~180 N minimum tensile rating)
• Color / Finish: Natural White / Semi-Translucent Neutral
• Flammability Rating: UL 94V-2 (Self-extinguishing)
• Operating Temperature Envelope: -40°C to +85°C (-40°F to +185°F)
• Dielectric Strength: Approx. 50 kV/mm (High electrical insulating performance)
• Locking Mechanism: Integrated 4-Tooth Precision Ratchet Pawl with Non-Releasable Internal Cam
• Chemical Resistance: Highly resistant to mineral oils, greases, automotive fluids, weak organic acids, and alkalis
• Net Pack Weight: Approx. 110 g to 125 g (Total for 100 pcs)

Features

• Intermediate-Duty Tensile Rating: With an 18 kg (40 lb) tensile threshold and 3.6 mm wide strap, it handles substantially higher mechanical loads and bundle weights than standard 2.5 mm miniature ties without stretching or snapping.
• Generous 250mm Circumference Reach: Easily loops around large conduit bundles, thick multi-core industrial motor feeds, or 2-inch structural pipe frames in a single wrap.
• Virgin PA66 Construction: Molded without low-grade regrind plastic to maintain high elasticity, resistance to cyclic vibration fatigue, and structural integrity in low ambient temperatures.
• Precision Non-Slip Ratchet Head: Features a heavy-duty internal pawl that seats solidly into each tooth groove, preventing back-slippage under dynamic load shifting or machine vibration.
• Bent, Ergonomic Feed Tip: Curved tail profile guides effortlessly into the ratchet head opening, allowing fast, one-handed threading even in cramped panels or when wearing protective gloves.

Common Applications

• Industrial Control Panels & Switchgear: Securing heavy mains distribution cables, 3-phase motor wiring, and trunk runs along slotted DIN rail wire ducting.
• Automotive & Commercial Vehicle Wiring: Fastening auxiliary lighting harnesses, heavy battery inverter cables, and engine bay secondary looms.
• Automation & CNC Machinery: Clamping flexible air hoses, vacuum lines, and motor encoder cables to drag chains and large aluminum extrusion framing.
• Solar & Renewable Energy Arrays: Bundling DC solar string cabling, ground grounding conductors, and inverter feed lines inside junction boxes and enclosures.
• Data Center & Networking Racks: Bundling thick trunks of 24 to 48 Cat6/Cat6A patch cables along vertical rack management channels.

Usage Tips

• Flush Cutting Procedure (CRITICAL):
  • After cinching the tie to the desired tension, always snip off the protruding strap flush with the head using flush cutters (micro-shears) or a dedicated cable tie tensioning tool.
  • Using standard lineman pliers or utility shears leaves a rigid, razor-sharp plastic barb on a 3.6 mm tie that can easily slash a technician's hands, forearms, or adjacent wire insulation jackets during future panel service.
• Clamping Delicate Pneumatics & Shielded Lines:
  • When securing flexible polyurethane air lines or foil-shielded data conduits, avoid overtensioning with mechanical hand pullers.
  • Excessive compression can collapse soft pneumatic tubing or alter the impedance of high-frequency twisted-pair cabling. Pull firmly by hand until snug, then trim flush.
• UV & Sunlight Exposure Consideration: Manufactured from natural virgin PA66, these white ties are designed primarily for indoor electrical cabinets, protected machinery, and indoor facilities. For long-term exterior installations exposed to continuous direct UV sunlight, select UV-stabilized black cable ties containing carbon black to prevent photo-oxidation and brittleness over time.
• Moisture Preservation: Nylon 6/6 is a hygroscopic engineering plastic that absorbs atmospheric moisture (2% to 3%) to achieve optimum tensile toughness. Store unopened bags sealed until required; if ties are stored in extremely dry, air-conditioned workshops, keep the polybag zipped to prevent the ties from losing moisture and turning brittle.
