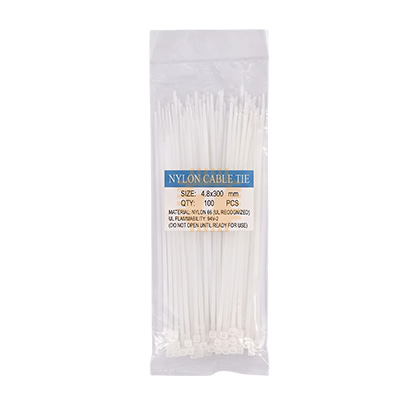

The Cable Tie 4.8x300mm White (100pcs Pack) is a heavy-duty, industrial-grade nylon zip tie bundle engineered for demanding cable bundling, commercial electrical installations, automotive wiring looms, and mechanical infrastructure fastening. Precision-molded from high-tensile virgin Polyamide 66 (Nylon 6/6), each tie features an integrated one-piece ratcheting locking head and deep transverse locking serrations that deliver exceptional pull-out resistance and reliable engagement. With an expanded 4.8 mm strap width and a substantial 300 mm length, this heavy-duty pack easily secures large-diameter multi-conductor cable trunks, rigid conduit runs, pneumatic hose lines, and structural elements with a clean, semi-translucent white finish.

Specifications

• Product Type: Self-Locking One-Piece Heavy-Duty Nylon Cable Ties (Zip Ties)
• Pack Quantity: 100 Pieces per Pack
• Nominal Dimensions: 4.8 mm Width × 300 mm Length (Approx. 0.19 × 12.0 Inches)
• Actual Strap Width: Approx. 4.6 mm to 4.8 mm
• Strap Thickness: Approx. 1.2 mm to 1.4 mm
• Maximum Bundle Diameter: Approx. 80 mm to 85 mm (~3.1 to 3.3 Inches)
• Minimum Bundle Diameter: Approx. 3.5 mm to 5.0 mm
• Material: Virgin Polyamide 66 (PA66 / Nylon 6/6)
• Loop Tensile Strength: Approx. 22 kg (50 lbs / ~220 N minimum tensile rating)
• Color / Finish: Natural White / Semi-Translucent Neutral
• Flammability Rating: UL 94V-2 (Self-extinguishing)
• Operating Temperature Envelope: -40°C to +85°C (-40°F to +185°F)
• Dielectric Strength: Approx. 50 kV/mm (High electrical insulating performance)
• Locking Mechanism: Integrated 4-Tooth Precision Ratchet Pawl with Non-Releasable Internal Cam
• Chemical Resistance: Excellent resistance to mineral oils, hydraulic fluids, common grease, weak organic acids, and alkalis
• Net Pack Weight: Approx. 200 g to 220 g (Total for 100 pcs)

Features

• Standard Heavy-Duty 50 lb Tensile Strength: Engineered with a wide 4.8 mm cross-section that sustains up to 22 kg (50 lbs) of continuous mechanical load without stretching, slipping, or breaking under tension.
• Expansive 300mm (12-Inch) Reach: Accommodates large-capacity wire bundles, 3-inch industrial conduit pipes, and wide framing extrusions in a single, secure loop.
• Virgin PA66 Construction: Molded without recycled regrind polymer to guarantee high elasticity, fatigue endurance, and cold-temperature toughness without brittle snapping.
• Positive-Engagement Ratchet Pawl: The internal locking pawl interlocks firmly with molded serrations along the strap, resisting high vibrational loads and thermal expansion cycles.
• Ergonomically Bent, Tapered Tip: Features a curved tail profile that guides smoothly into the locking head collar, allowing fast threading when working around tight corners or with gloved hands.

Common Applications

• Commercial & Industrial Switchgear: Securing thick mains input feeders, 3-phase motor cables, and heavy auxiliary control trunks inside distribution boards and breaker panels.
• Solar PV & Energy Storage Systems: Grouping heavy-gauge DC string conductors, inverter battery cables, and earth grounding lines inside raceways and combiner boxes.
• Automotive & Heavy Equipment: Strapping primary battery starter cables, winch harnesses, auxiliary lighting arrays, and heavy-duty frame-mounted wiring looms.
• Industrial Automation & Robotics: Clamping large pneumatic tubing bundles, hydraulic return hoses, and CNC machine umbilical lines to support arms and drag chains.
• HVAC & Facilities Maintenance: Fastening insulated duct jackets, securing flexible drain lines, and organizing utility conduits along ceiling purlins and unistrut channels.

Usage Tips

• Flush Trimming Best Practice (CRITICAL):
  • After pulling the tie to final tension, cut off the tail flush with the locking head using high-leverage flush cutters or a calibrated cable tie tensioning gun.
  • On a wide 4.8 mm tie, standard diagonal pliers or utility shears will leave a sharp, rigid corner that poses a serious laceration hazard to technicians servicing the enclosure later.
• Tensioning Heavy-Gauge Bundles:
  • For high-load applications, cinch the bundle snugly by hand or with a tension tool to settle the wires into a compact circular profile before final trimming.
  • When clamping over flexible conduit or soft rubber hoses, avoid excessive tool tension to prevent throttling fluid flow or deforming the inner sleeve.
• Sunlight & Outdoor UV Exposure: Natural white PA66 is tailored for indoor electrical panels, factory equipment, and covered installations. For continuous outdoor installations under direct UV sunlight, utilize UV-stabilized black cable ties formulated with carbon black to protect against ultraviolet embrittlement.
• Maintaining Nylon Suppleness: Nylon 6/6 is an inherently hygroscopic polymer that relies on an internal equilibrium moisture content (2% to 3%) for maximum fracture toughness. Keep unopened bags sealed until deployment; if storing in low-humidity or dry winter warehouse environments, reseal partially used packs to preserve flexibility.
