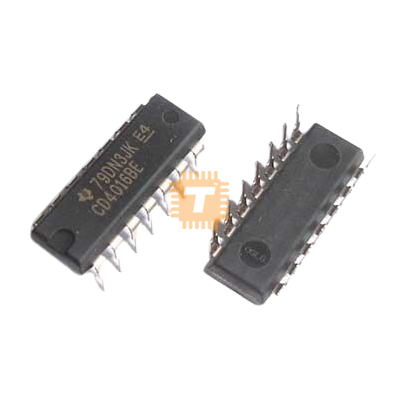

CD4016B Series types are quad bilateral switches intended for the transmission or multiplexing of analog or digital signals. Each of the four independent bilateral switches has a single control signal input which simultaneously biases both the p and n device in a given switch on or off.

The CD4016 "B" Series types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).

Features:

• 20-V digital or ± 10-V peak-to-peak switching
• 280- typical on-state resistance for 15-V operation
• Switch on-state resistance matched to within 10 typ. over 15-V signal-input range
• High on/off output-voltage ratio:
  65 dB typ. @ fis = 10 kHz, RL = 10 k
• High degree of linearity:
  <0 xss=removed xss=removed src="http://focus.ti.com/graphics/shared/symbols/uc/Omega.gif" xss=removed>
• Extremely low off-state switch leakage resulting in very low offset current and high effective off-state resistance:
  100pA typ. @ VDD–VSS = 18 V, TA = 25°C
• Extremely high control input impedance (control circuit isolated form signal circuit:
  1012typ.
• Low crosstalk between switches:
  –50 dB typ. @ fis= 0.9 MHz, RL = 1 k
• Matched control-input to signal-output capacitance:
  Reduces output signal transients
• Frequency response, switch on = 40MHz (typ.)
• 100% tested for quiescent current at 20 V
• Maximum control input current of 1 µA at 18 V over full package temperature range; 100 nA at 18 V and 25°C
• 5-V, 10-V, and 15-V parametric ratings
• Applications:
  • Analog signal switching/multiplexing
    • Signal gating
    • Squelch control
    • Chopper
    • Modulator
    • Demodulator
    • Commutating switch
  • Digital signal switching/multiplexing
  • CMOS logic implementation
  • Analog-to-digital & digital-to-analog conversion
  • Digital control of frequency, impedance, phase, and analog-signal gain

Package: DIP-14

Link to datasheet: https://www.ti.com/lit/ds/symlink/cd4016b.pdf?ts=1630321146216&ref_url=https://www.ti.com/store/ti/en/p/product/?p=CD4016BE
