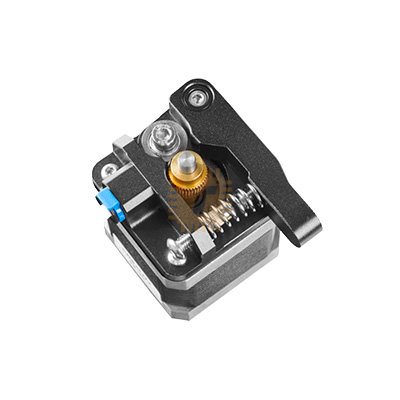

The Creality Black MK8 Ferrous Metal Extruder (Right Hand) is an upgraded, heavy-duty filament feeder assembly designed to replace fragile factory plastic extruders on desktop FDM 3D printers. Fabricated from high-density ferrous metal alloy with a wear-resistant black electro-deposition finish, this right-handed extruder provides enhanced structural rigidity, high clamping stability, and consistent feeding performance for standard 1.75mm filaments.

Specification

• Extruder Type: MK8 Direct / Bowden Feed Mechanism
• Orientation Handedness: Right-Handed (Right-Side Tension Lever Arm)
• Filament Diameter Compatibility: 1.75mm
• Main Body Material: High-Density Ferrous Metal Alloy (Heavy-Duty Steel Construction)
• Drive Gear Component: High-Traction 40-Tooth Hardened Steel / Brass Drive Gear
• Idler Bearing: Precision U-Groove Ball Bearing (624ZZ Profile) for smooth filament tracking
• Pneumatic Fitting Standard: PC4-M6 Threaded Push-Fit Fitting (for 4mm OD PTFE Bowden Tube)
• Motor Compatibility: Standard NEMA 17 Stepper Motors (42mm x 42mm faceplate profile)
• Surface Finish: Wear-Resistant Black Electro-Coated / Powder Finish
• Printer Compatibility: Direct fit for Creality Ender-3 series, Ender-3 Pro, Ender-3 V2, Ender-5 series, CR-10 series, CR-10S, CR-20, and most NEMA 17 MK8-based 3D printers.

Features

• Heavy-Duty Ferrous Metal Construction: High-density ferrous metal build prevents the flexing, fatigue, and cracking common in stock plastic arms, ensuring long-term structural integrity and zero frame distortion.
• High-Tension Compression Spring System: Equipped with an industrial-grade steel compression spring and adjustment bolt, providing high, repeatable clamping force to eliminate filament slippage during rapid print moves.
• Constrained Filament Path: Machined with a tight-tolerance entry and exit channel that supports the filament closely, reducing bending, buckling, and jams during high-retraction printing sequences.
• Smooth Idler Tracking: Utilizes a precision U-groove 624ZZ ball bearing that presses the filament securely against the drive gear teeth with minimal rotational resistance.
• Integrated PC4-M6 Coupler Port: Features an integrated M6 threaded output port pre-fitted for a PC4-M6 pneumatic push-fit connector, enabling quick and secure attachment of standard 4mm outer-diameter Bowden tubes.

Common Applications

• Factory Extruder Reliability Upgrade: Replacing cracked or worn-out stock plastic extruder assemblies on Creality Ender-3, CR-10, and similar open-source 3D printers.
• Continuous & High-Duty Cycle Printing: Maintaining consistent extrusion pressure across extended, multi-day print runs where mechanical components undergo heavy cyclical stress.
• Semi-Flexible Filament (TPU) Handling: Providing the rigid support and constrained feed path required to guide flexible filaments smoothly without buckling around the drive gear.

Professional Installation and Maintenance Tips

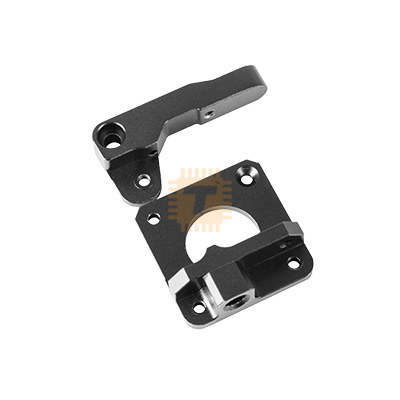

• Ensure Free Pivot Movement: When bolting the black tension arm onto the base plate, avoid over-tightening the pivot screw. The arm must pivot smoothly on its sleeve bushing; over-torquing will cause the lever to bind and lead to severe under-extrusion.
• Align Drive Gear Teeth with Filament Path: Sight down the filament entry hole while tightening the grub screws onto the NEMA 17 motor shaft to ensure the drive gear teeth are centered with the guide channel and idler bearing groove.
• Fine-Tune Spring Tension: Set the spring compression just tight enough to prevent gear slipping or grinding. Excessive clamping pressure can deform 1.75mm filament into an oval shape, causing high friction inside the Bowden tube.
• Calibrate Extruder E-Steps: After installing the new feeder assembly, perform an E-step calibration test (commanding 100mm of filament extrusion) to verify and adjust the steps/mm value in your printer firmware for exact extrusion accuracy.
