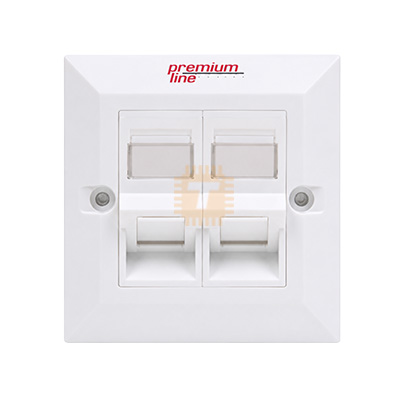

This premium Euro II standard 86 × 86mm dual-port RJ45 face plate is a high-density, wall-mounted network socket panel engineered to strict German quality standards. Featuring a unique 90℃ right-angle, downward-facing dual port configuration, integrated spring-loaded dust shutters, and a seamless snap-in modular system, this face plate provides a clean, professional finish for routing two independent data or voice lines through a single wall box footprint.

Specification

• Form Factor Standard: Euro II / UK Standard Square Profile
• Dimensions: 86mm x 86mm
• Port Capacity: Dual Port (Accommodates up to 2× RJ45 Keystone Slots)
• Orientation: 90℃ Right Angle (Downward-facing exit)
• Accessory System: Modular Snap-In design with built-in spring shutters
• Material: High-Impact, UV-Resistant ABS/PC Thermoplastic
• Color: Clean Signal White (RAL 9003 style)
• Labeling Options: Integrated clear-window ID strip for multi-port numbering
• Manufacturing Standard: Engineered / Made in Germany

Features

• 90-Degree Downward Outlets: By angling both RJ45 ports directly downward at a 90℃ pitch, the patch cords exit parallel to the wall. This drastically reduces the physical footprint of the plugs, allowing office desks, cabinets, and media centers to be pushed flush against the wall without bending or damaging the network cables.
• Dual Spring-Loaded Anti-Dust Shutters: Each port is independently protected by an integrated mechanical shutter. When a patch cable is unplugged, its shutter snaps shut automatically, shielding the internal gold-plated keystone pins from dust, drywall debris, and insect ingress.
• Modular Snap-In Euro II Build: Designed as a two-piece system comprising a structural mounting frame and a clip-on outer bezel. This allows installers to terminate the internal keystone jacks comfortably before snapping the polished outer faceplate securely into place, completely hiding the mounting screws.
• High-Impact, Non-Yellowing Shell: Molded from premium electrical-grade polymers that resist cracks during installation and withstand UV exposure, ensuring the plate retains its clean white aesthetic over years of service.

Common Applications

• Commercial Office Workstations: Installed along perimeter walls or inside desk-height trunking channels where a single desk requires dual network connections (e.g., one dedicated PC line and one VoIP phone line) while keeping office furniture tight against the drywall.
• Smart TV & Home Theater Consoles: Placed directly behind low-profile flat-screen entertainment centers and wall-mounted televisions where rear clearance is highly restricted but multiple connections (Smart TV and gaming console/media box) are needed.
• Institutional Classroom Data Drops: Providing rugged, low-profile student and podium network hookups that resist accidental kicks or impact damage.
• Industrial Lab Benchways: Cleanly routing localized dual-data terminations for diagnostic or production equipment lines.

Professional Usage & Deployment Tips

• Maintain Proper Back-Box Depth: While the 90℃ faceplate saves massive space on the outside of the wall, ensure your internal back-box (pattress box) has a minimum depth of 35mm to 45mm. This gives the two internal horizontal solid-core Cat6/Cat6A network cables enough room to loop comfortably without exceeding their bend radius limits inside the wall cavity.
• Secure Keystone Orientation First: Double-check that your snap-in keystone jacks are oriented correctly before clipping them into the inner frame. The locking clips of the keystone jacks typically align with the molded channels so that when patch cords are inserted, their release tabs face forward for easy thumb access.
• Utilize the ID Label Window: Always use the built-in labeling strip to note the patch panel port numbers (e.g., "A-104 / A-105"). Marking this with a label maker rather than handwriting directly on the plastic guarantees a professional lookup template for future system testing.
• Snap Bezel Off Safely During Repainting: If you need to paint the room, do not paint over the face plate. Insert a flat, non-marring plastic pry tool into the small slot on the lower edge of the outer bezel to release the clips. Remove the clean outer cover, paint the walls, and snap it back on once the wall is dry.
