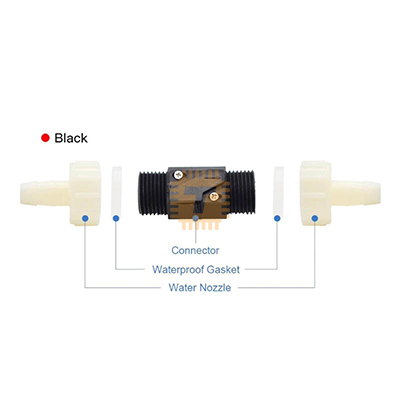

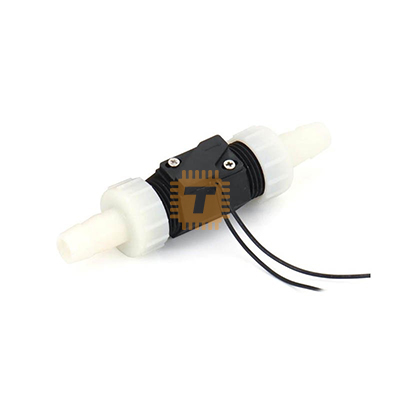

The DZM Water Flow Switch Sensor is a compact, reliable, and high-sensitivity flow detection device designed to monitor and protect CO₂ laser engraving and cutting machines. It ensures that water is continuously flowing through the laser tube, preventing overheating and extending the lifespan of your laser equipment.

Made from durable plastic material with a black corrosion-resistant body, this sensor is ideal for use in closed-loop water cooling systems. The DZM flow switch automatically activates or cuts off the laser when water flow is detected or interrupted, providing a critical safety feature for your setup.

Key Features:

• Essential safety component for CO₂ laser machines
• Accurately detects water flow to protect laser tubes from overheating
• Durable plastic housing resistant to corrosion and leaks
• Automatic on/off switching based on water flow status
• Compact and lightweight design for easy installation
• High reliability and long service life
• Suitable for industrial and DIY laser systems

Technical Specifications:

• Model: DZM Water Flow Switch Sensor
• Material: High-quality plastic (Black)
• Rated Voltage/Current: DC 0–36V / ≤0.5A (signal output)
• Flow Range: 1 – 10 L/min (typical)
• Switch Type: Normally Open (closes when water flows)
• Connector Type: Hose barb (for standard water pipes)
• Outlet Diameter: ~10 mm (approx.)
• Thread Type: G1/4 or 10 mm hose fitting (depending on version)
• Operating Pressure: ≤1.75 MPa
• Operating Temperature: 0°C – 80°C
• Cable Length: ~30 cm
• Color: Black

Applications:

• CO₂ laser engraving and cutting machines
• Water-cooled laser tubes and chillers
• CNC and industrial cooling systems
• 3D printers or equipment requiring flow detection
• DIY cooling or fluid monitoring projects
