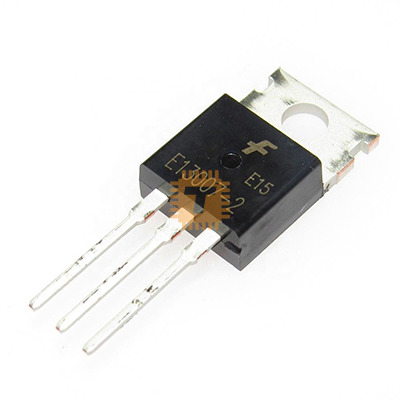

The MJE13007 is designed for high−voltage, high−speed power switching inductive circuits where fall time is critical. It is particularly suited for 115 and 220 V switch−mode applications such as Switching Regulators, Inverters, Motor Controls, Solenoid/Relay drivers and Deflection circuits.

Specifications:

• Type Designator: MJE13007
• Material of Transistor: Si
• Polarity: NPN
• Maximum Collector Power Dissipation (Pc): 80 W
• Maximum Collector-Base Voltage |Vcb|: 700 V
• Maximum Collector-Emitter Voltage |Vce|: 400 V
• Maximum Emitter-Base Voltage |Veb|: 9 V
• Maximum Collector Current |Ic max|: 8 A
• Max. Operating Junction Temperature (Tj): 150 °C
• Transition Frequency (ft): 4 MHz
• Collector Capacitance (Cc): 110 pF
• Forward Current Transfer Ratio (hFE), MIN: 8

Documentation:

• Datasheet
