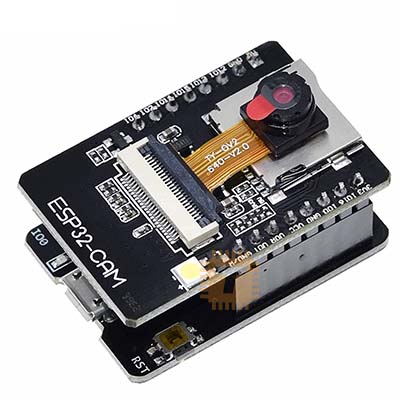

The ESP32-CAM Adapter Board simplifies programming and powering of ESP32-CAM modules by providing a USB-to-serial interface and regulated 5 V supply. It eliminates the need for external FTDI modules and jumper wiring, making it ideal for prototyping and deployment.

Specifications

• Interface Chip: CH340G or CP2102 (varies by variant)
• USB Port: Micro USB (power + serial)
• Output Voltage: 5 V regulated (via onboard AMS1117 or equivalent)
• Input Voltage: 5 V via USB
• Serial Pins: TX, RX, GND, 5 V (direct plug-in to ESP32-CAM)
• Boot Mode: IO0 button for flashing mode
• Compatibility: ESP32-CAM AI-Thinker and compatible modules
• Mounting: 2.54 mm header socket for direct ESP32-CAM insertion

Features

• Simplifies flashing and powering of ESP32-CAM modules
• Onboard USB-to-serial bridge for plug-and-play programming
• Regulated 5 V output for stable camera operation
• IO0 button for entering bootloader mode during flashing
• Ideal for prototyping, camera deployment, and Wi-Fi projects
• Common use cases:
  - Programming ESP32-CAM via USB without external FTDI
  - Powering ESP32-CAM in standalone camera setups
  - Simplifying development of Wi-Fi surveillance and IoT nodes
  - Classroom and maker projects using ESP32-CAM

NOTE: ESP-32 Cam board not included
