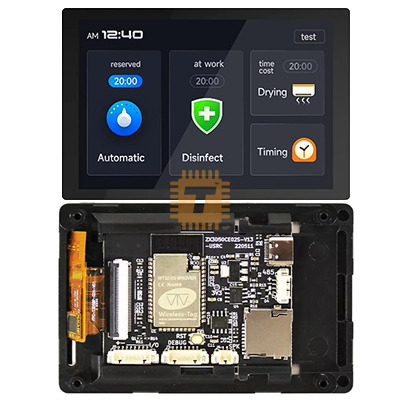

The WT32-SC01 Plus is a 3.5 inch LCD touch screen display using an ESP32-S3 module contained in a plastic case. The board is equipped with a GUI platform firmware developed independently, and supports graphic drag and drop programming to help users complete the development of a customized control platform. The WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 16MB SPI Flash and 8MB PSRAM. Applications include home automation, smart home control panel, wearable electronics, etc.

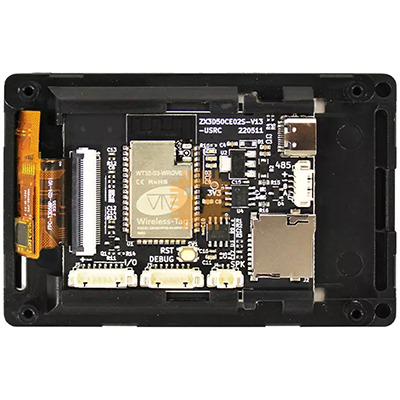

It is an upgraded version of the WT32-SC01 development board. The upgraded product is based on Loxin ESP32-S3. The screen is replaced by IPS and fully fitted, making the touch more sensitive and smooth. At the same time, it is equipped with an integrated black plastic frame, which can be quickly installed on your products by means of clasp. The development board adds a speaker, RS485, SD card and an interface for debugging.

Compared with The previous version of SC01, the main controller of WT32-SC01 Plus development board is configured with a more integrated and powerful WT32-S3-Wrover-N16R2 module. this module is a general-purpose WiFi + BT + BLE MCU module, 16MB SPI flash and 2MB PSRAM configured in. It supports RGB colorful display of various pictures, capacitive multi-touch makes interaction easier, and the use of IPS full touch screen brings users better visual effects and a more comfortable experience.

WT32-SC01 Plus development board can also develop and debug functions such as buttons, voice and camera through the expansion interfaces on both sides, greatly shortening the development cycle of users.

Features:

• Resolution: 480x320
• LCD Interface: Wi-Fi, Bluetooth and USB Type C
• Backlight: LED
• Powerful development firmware: Equipped with GUI platform firmware allows users to customize their own personalized control scheme. Graphical programming makes development easier.
• LCD with capacitive multi-touch panel: RGB colorful display and visual touch operation are more convenient to make interaction.
• Rich extension interfaces: Customize functions such as button operation, voice control, and camera operation through the expansion interfaces.
• Easy to assemble: The small size of the motherboard can be perfectly combined with the user's products through the buckle, saving space and cost.

Specifications:

• MCU: ESP32-S3-WROVER-N16R2
• Power Supply: DC 5V 2A
• Power management: Two LDOS of 3.3V output
• Capacity: 2Mbyte PSRAM+ 16Mbyte Flash
• Operating current: 240mA
• Operating Temperature: -20°C~70°C
• Dimensions: 60mm x 92mm x 10.8mm

Display Parameters:

• Display Type: LCD
• Driver IC Model: ST7701
• Viewing Angle: FULL
• Display Size: 3.5 inches
• Resolution: 480 x 320
• Interface: MCU8080 8-bit
• Colour: RGB565

Touch Parameters:

• Touchscreen Type: Capacitive touch
• Driver IC Model: FT6336U
• Interface: I²C
• Touchscreen structure: G+F
• Touch Mode: Single touch

Specs and Docs:

• PDF Datasheet
• Online GUI Designer
• Project enabling LVGL for this LCD Display
• Repositories and Information on GitHub
